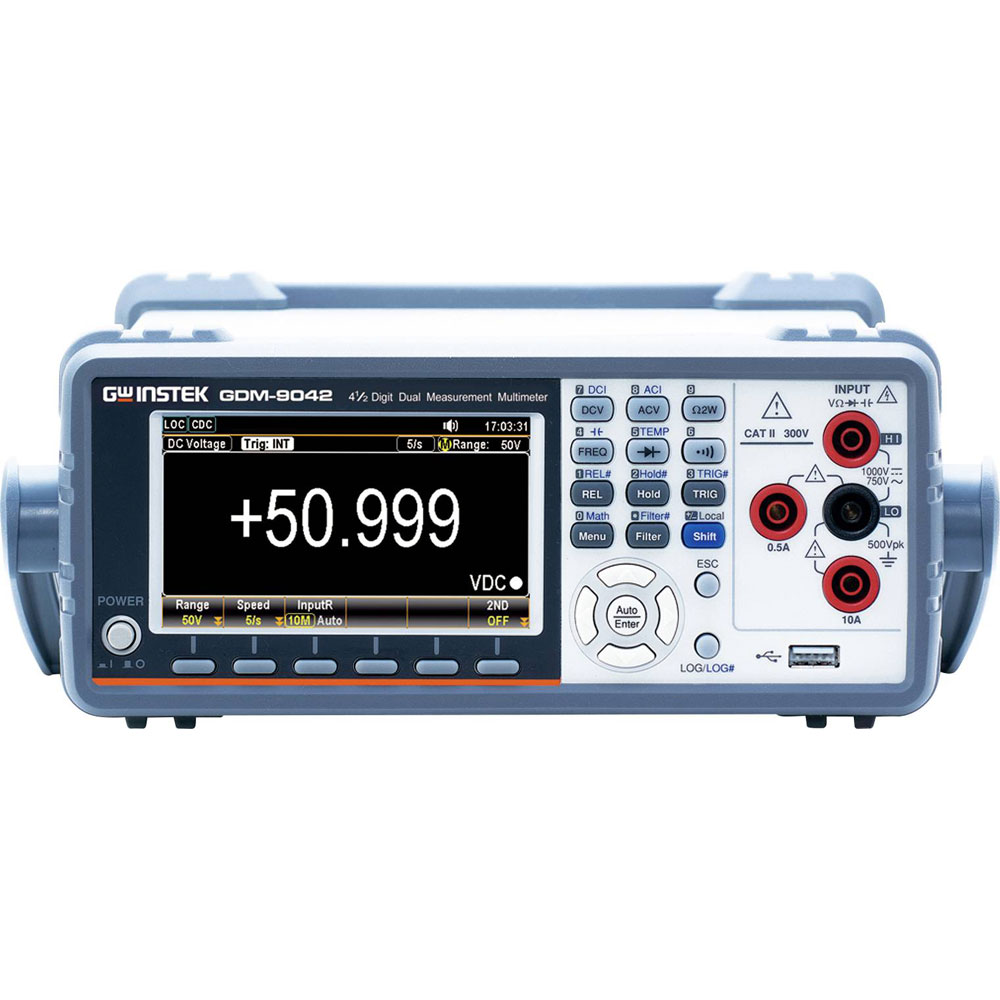

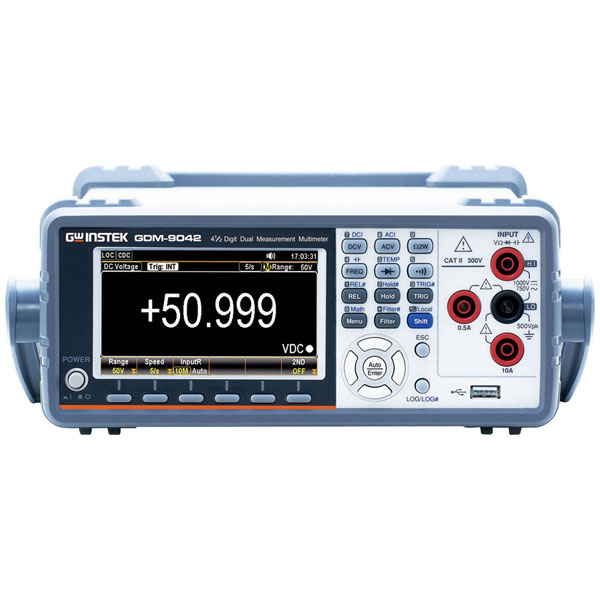

GW Instek 01DM904210GS GDM-9042 Precision Tester Digital CAT II 300V 50k Count

GW Instek's 01DM904210GS, also known as 3436262, is a precision digital tester designed for advanced measurement applications requiring high accuracy and reliability. The device, part of the GDM-9042 series, features a CAT II 300V safety rating and a 50,000 count display, which ensures precise and accurate readings across a wide range of electrical parameters. This product from GW Instek is engineered to provide engineers and technicians with robust performance in testing environments, making it suitable for laboratory measurements, quality control processes, and electronic circuit analysis. Its versatile functionality supports a comprehensive range of test scenarios, including measuring voltage, current, resistance, and continuity with a high degree of precision.

Type	Precision tester
A AC reading range (min.)	500.00µA
A DC reading range (max.)	10A
Amperage reading range AC (max.)	10A
Amperage reading range DC (min.)	500.00µA
Basic accuracy	0.02%
Dimensions	(L x W x H) 302 x 268 x 107 mm
Display	Digital
Display (counts)	50.000
Frequency reading range	1MHz
Height	107mm
Insulation Test Voltage	CAT IV
Length	302mm
Reading category	CAT II 300 V
V AC reading range (max.)	750V
V AC reading range (min.)	500.00mV
Voltage DC reading range (max.)	1000V
Voltage reading range DC (min.)	500.00mV
Weight	3.2kg
Width	268mm
