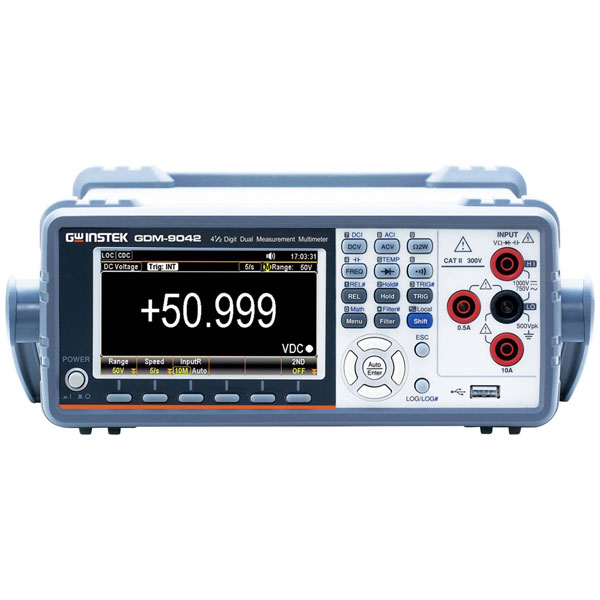

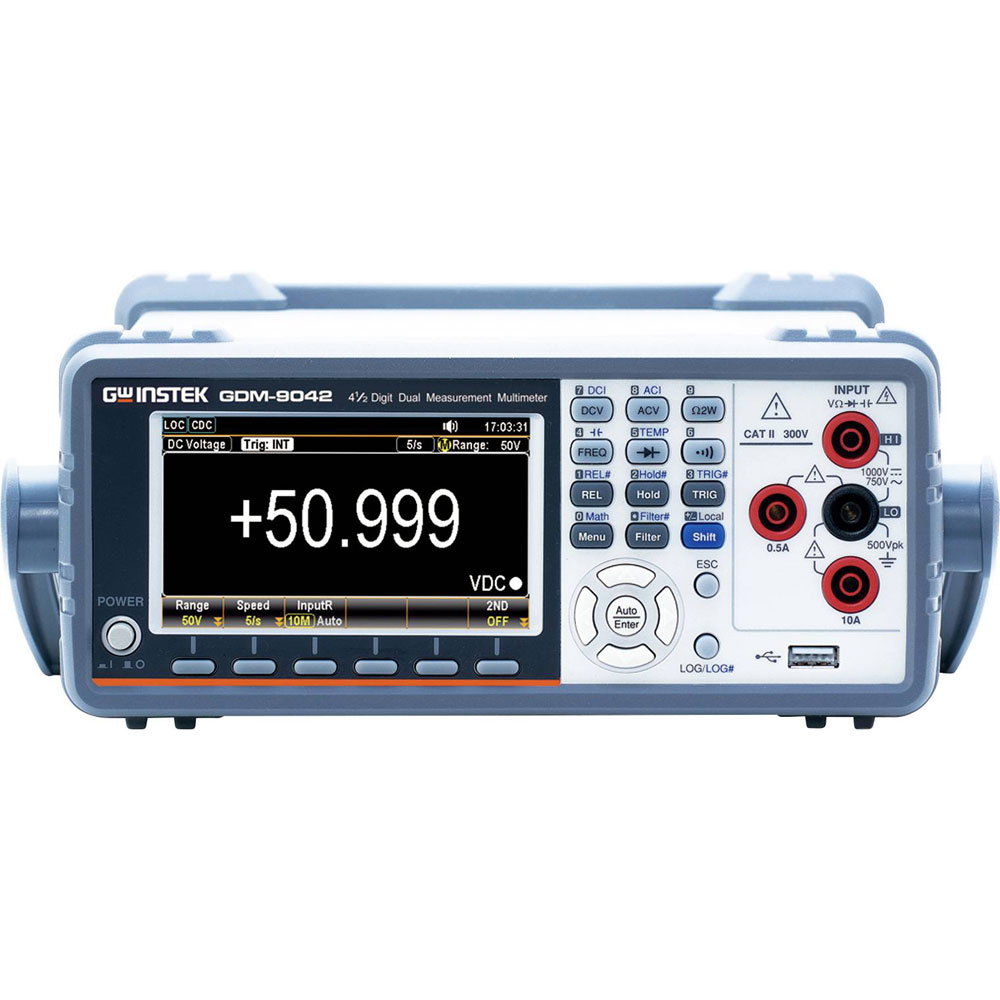

GW Instek 01DM904200GS GDM-9042 Precision tester Digital Graphics display 50k

GW Instek's GDM-9042 Precision Tester, part number 01DM904200GS, is a state-of-the-art digital graphics display instrument designed for precise electrical measurements. This tester features a 50k count display that enhances readability and accuracy, making it ideal for laboratory environments requiring meticulous data acquisition and analysis. Engineers typically employ the GDM-9042 in applications such as component testing, calibration processes, and electronic repair work due to its robustness and reliability. The device's alternate designation, 3436261, is recognised for its exceptional precision, supporting a wide range of technical assessments.

Type	Precision tester
A AC reading range (min.)	500.00µA
A DC reading range (max.)	10.000A
Amperage reading range AC (max.)	10.000A
Amperage reading range DC (min.)	500.00µA
Basic accuracy	0.02%
Calibrated	Manufacturer's standards (no certificate)
Current reading	AC/DC
Dimensions	(L x W x H) 302 x 268 x 107 mm
Display	Digital
Display (counts)	50.000
Height	107mm
Insulation Test Voltage	CAT I
Length	302mm
Reading category	CAT II 300 V
Temperature reading range (max.)	300°C
Temperature reading range (min.)	-200°C
V AC reading range (max.)	750.0V
V AC reading range (min.)	500.00mV
Voltage DC reading range (max.)	1000.0V
Voltage metering	AC/DC
Voltage reading range DC (min.)	500.00mV
Weight	3.2kg
Width	268mm
