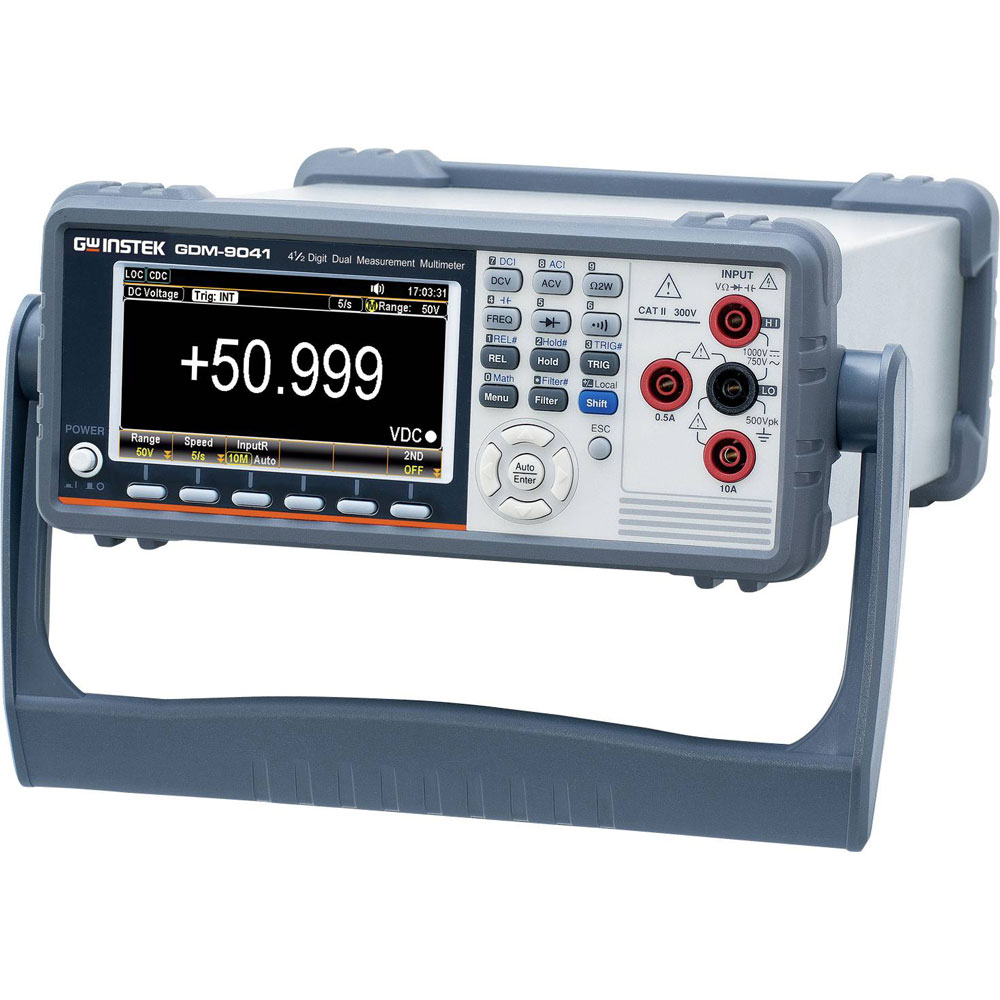

GW Instek 01DM904100GS GDM-9041 Precision tester Digital Display 300V 50k count

GW Instek's 01DM904100GS Precision Tester is a digital display with a 50,000 count for enhanced measurement accuracy. This device, also referenced as the 3436260, is capable of handling voltage ranges up to 300V, making it suitable for precise voltage and current measurements in various engineering fields. The tester is designed for applications requiring rigorous testing conditions, such as laboratory research, electrical engineering projects, and manufacturing quality control processes. Its robust design and high precision make it an essential tool for professionals needing reliable data acquisition during the testing and development phases of complex electrical systems.

Type	Precision tester
A AC reading range (min.)	500.00µA
A DC reading range (max.)	10.000A
Amperage reading range AC (max.)	10.000A
Amperage reading range DC (min.)	500.00µA
Basic accuracy	0.02%
Current reading	AC/DC
Dimensions	(L x W x H) 302 x 268 x 107 mm
Display	Digital
Display (counts)	50.000
Frequency reading range	1MHz
Height	107mm
Insulation Test Voltage	CAT I
Length	302mm
Reading category	CAT II 300 V
Reading range - capacity	50.00µF
Reading range - resistance	100.00GΩ
V AC reading range (max.)	750.0V
V AC reading range (min.)	500.00mV
Voltage DC reading range (max.)	1000.0V
Voltage metering	AC/DC
Voltage reading range DC (min.)	500.00mV
Weight	3.2kg
Width	268mm
