The MC13783 is a highly integrated power management, audio and user interface component dedicated to handset and portable applications covering Global System for Mobile Communications (GSM), General Packet Radio Service (GPRS), Enhanced Data for GSM Evolution (EDGE) and Universal Mobile Telecommunications System (UMTS) standards.
- Battery-charger interface for wall charging and USB charging
- 10-bit ADC for battery monitoring and other readout functions
- Buck switchers for direct supply of the processor cores
- Boost switcher for backlight and USB On-The-Go (OGT) supply
- Regulators with internal and external pass devices
- Receive amplifiers for earpiece
- Loudspeaker
- Headset and line out
- 13-bit stereo recording from analogue input source such as FM radio
- 16-bit stereo digital to analogue converter (DAC) supporting multiple sample rates
- SSI audio bus with network mode for connection to multiple devices
- Power control logic with processor interface and event detection
- Real-time clock (RTC) and crystal oscillator circuitry
- Transmit amplifiers for two handset microphones and a headset microphone
- 13-bit voice codec with dual ADC channel and both narrow and wideband sampling
- Dual serial peripheral interface (SPI) control bus with arbitration mechanism
- Multiple backlight drivers and LED control
- Including funlight support
- USB/RS-232 transceiver with USB carkit support
- Touch-screen interface

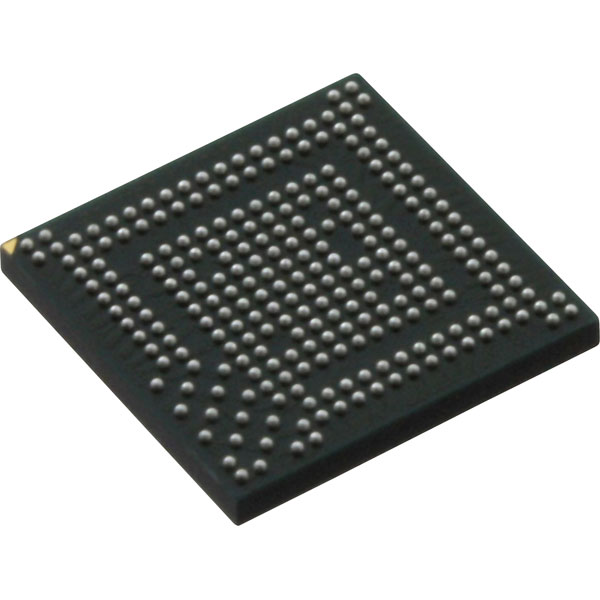

- 247 BGA 0.5mm pitch (10mm x 10mm) to optimize the size of the system
- Compatibility with CEA-936-A carkit regulation
- Integrated funlights and audio modulation features
- Capability to support two processor applications with dual SPI
- This product is included in Freescale’s product longevity program
- With assured supply for a minimum of 10 years after launch
ATLAS 3G PWRMNGMNT 5
