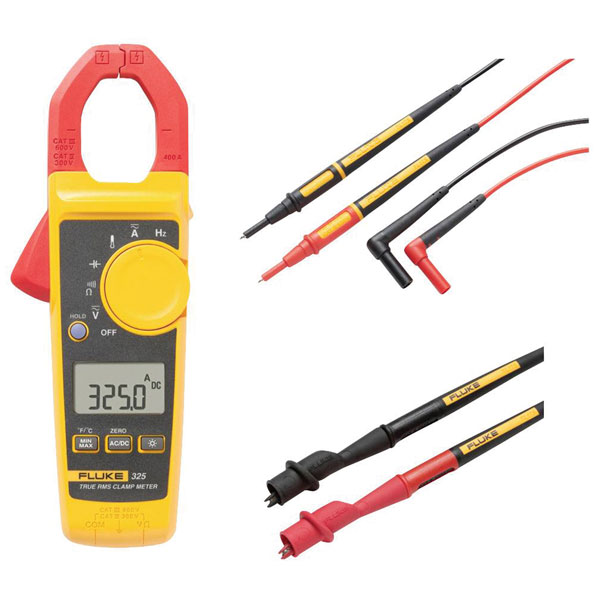

Fluke 6003375 Series FLK-325 Clamp meter handheld digital CAT III/IV

Real effective amps clamp Real-effective measurements and optimized ergonomics make the 320 series clamp-on ammeters the most important for installation and troubleshooting in industrial and building technology applications. The Fluke 323, 324 and 325 Clamp Meters are used to check circuits, switches, fuses and contacts for the presence of load current, AC voltage or continuity. These compact and robust clamp-on ammeters are Ideal suitable for current measuring up to 400 A in cramped switch cabinets. The Fluke 325 clamp-on ammeter also enables direct current and frequency measurement. TL175 TwistGuard leads set Silicone measurement leads set of the special kind: In order to meet the requirements of EN 61010-031 safety classifications, the over-voltage category can be set between CAT II 1000 V and CAT III 1000 V/CAT IV 600 V because of the rotating measurement tip adjustment. Moreover, damages become visible immediately owing to the second white silicone layer. Design with 2 mm thin measuring tip.

Type	Clamp meter
A AC reading range (min.)	0.01A
A DC reading range (max.)	400A
AC resistance	10MΩ
Amperage reading range AC (max.)	400A
Amperage reading range DC (min.)	0.01A
Basic accuracy	1%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC/DC
Dc Resistance	10MΩ
Dim	(W x H) 75 mm x 207 mm
Display	Digital
Display (counts)	4000
Frequency Range	45 Hz -400Hz
Frequency reading range	5 Hz - 500Hz
Height	207mm
Interfaces	none
Measurement type (details)	True RMS
Misc Attribute	FLK-325/TL175/AC175
Opening range of current clamps	40mm
Power supply (details)	2x AAA battery
Reading range - capacity	0.1 µF - 1000µF
Reading range - resistance	0.1 Ω - 40000Ω
V AC reading range (max.)	600V
V AC reading range (min.)	0.1V
Voltage DC reading range (max.)	600V
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.1V
Width	75mm
