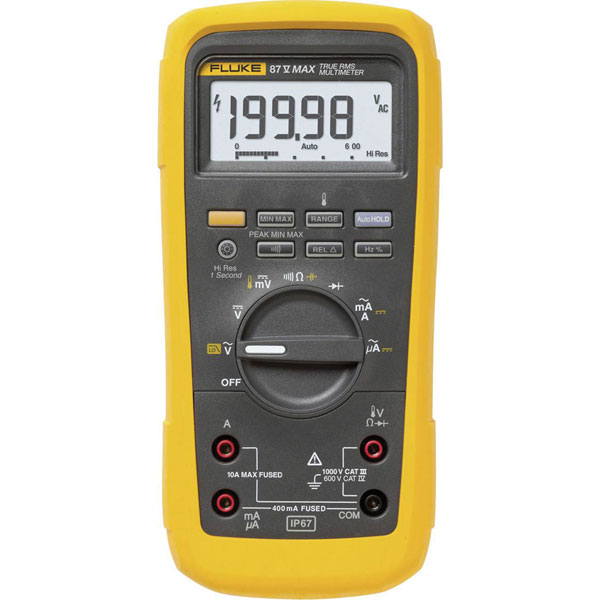

Fluke 5140033 87V-MAX multimeter digital CAT III 1000V, CAT IV 600V

The Fluke 87V MAX true-rms digital multimeter sets new standards for working in extreme conditions: The advanced features and high accuracy make most problems in electrical systems recognizable. The 87V MAX is specified according to IP 67 (water and dust proof); the extended operating temperature is between -15 °C and +55 °C (-40 °C for up to 20 minutes); the devices are designed for 95% humidity and have been developed and tested to withstand a fall from 4 meters without any problem. The Fluke 87V MAX true-rms digital multimeter is designed for the most extreme environmental conditions. The 87V MAX also has an industrial-grade outer casing and a removable holster, which also serves as a holder for measuring lines and measuring tips for one-handed operation.

Type	Multimeter
AC Voltage Max	1000V
DC Voltage Max	1000V
A AC reading range (min.)	0.1µA
A DC reading range (max.)	10A
Amperage reading range AC (max.)	10A
Amperage reading range DC (min.)	0.1µA
Automatic circuit breaker	false
Basic Accuracy	0.05%
Bluetooth interface	false
Cable length measurement	false
Cable symmetry testing for two wire connections a-b-E	false
Calibrated to	Manufacturer's standards (no certificate)
Calibration according to ISO/IEC 17025	N/A
Calibration certificate according to DAkkS	N/A
Capacitance Measurement	true
Clip factors for current sensor	N/A
Clip factors for current transformer	N/A
COFRAC certified	N/A
Continuity test	true
Current reading	AC/DC
Current supply	Battery
Data hold	true
Degree of protection (IP)	IP67
Dim	(L x W x H) 215 x 101 x 60 mm
Display	Digital
Duty cycle measurements	true
Explosion-tested version	false
Frequency measurement	true
Frequency reading range	0.01 Hz – 199.99kHz
Harmonics analysis/power quality	false
Height	60mm
High voltage test for motor windings	false
Indication	Digital
Inductance measurement	false
Interface	false
Interfaces	none
IR interface	false
Isolation resistance measuring range	N/A
Length	215mm
Lowest resolution temperature	0.1°C
Lowest resolution, AC current	0.01 µA
Lowest resolution, AC voltage	0.01 mV
Lowest resolution, AC/DC current	N/A
Lowest resolution, AC/DC voltage	N/A
Lowest resolution, capacitance	0.00001 µF
Lowest resolution, DC current	0.01 µA
Lowest resolution, DC voltage	0.01 mV
Lowest resolution, frequency	0.01 Hz
Lowest resolution, resistance	0.01 Ohm
Max. capacitance measuring range	9999µF
Max. current measuring range with clip factor	N/A
Max. current measuring range, AC	10A
Max. current measuring range, AC/DC	N/A
Max. current measuring range, DC	10A
Max. frequency measuring range	199.99kHz
Max. resistance measuring range	50MOhm
Max. temperature measuring range	1090°C
Max. value storage	true
Max. voltage measuring circuit category	600V
Max. voltage measuring range AC	1000V
Max. voltage measuring range AC/DC	N/A
Max. voltage measuring range DC	1000V
Measured value memory	false
Measurement principle	N/A
Measuring circuit category	CAT IV
Measuring range selection	Manual/automatic
Milliohm measurement with 4 wire technique (Kelvin connection)	false
Min. value storage	true
Misc Attribute	87V-MAX
Multiple display	false
Nominal test voltage 10 V	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	false
Nominal test voltage 250 V	false
Nominal test voltage 50 V	false
Nominal test voltage 500 V	false
Peak value memory	true
Power and energy measurement	false
Power supply (details)	3x AA battery
Reading range - capacity	0.01 nF - 9999µF
Reading range - resistance	0.1 Ω - 50MO
Relative measurement accuracy	N/A
Relative value measurement	true
Resistance test/diode test	true
Rotational speed measuring	false
Scaling bar graph linear	true
Scaling bar graph logarithmic	false
Temperature	+1090 - -200°C
Temperature measurement	true
Temperature measurement RTD	false
Temperature measurement TC	true
True RMS measurement	true
V AC reading range (min.)	0.1mV
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.1mV
Weight	698.5g
Width	101mm
With conductivity measurement	true
With decibel measurement (dB)	false
With display backlight	true
