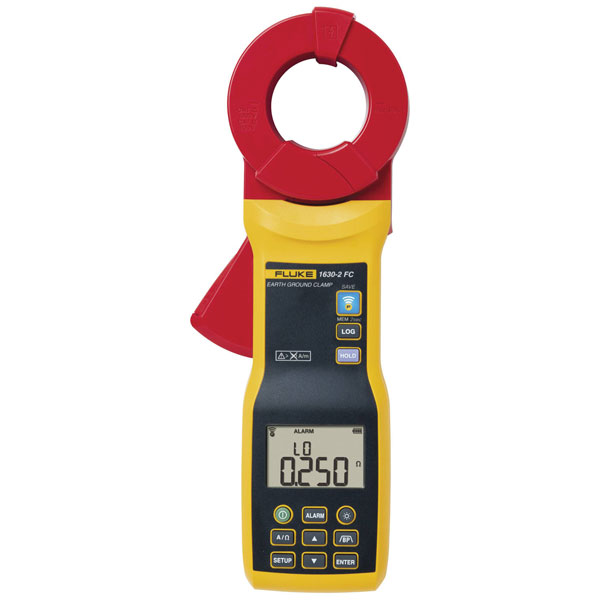

Fluke 4829532 1630-2 FC Meter Earth ground clamp wireless technology

With this Earthing loop measuring device with Fluke Connect functionality can be spike-less ground loop testing and earth leakage current measurements, so that the earth loop impedance can be detected without the earth and the earthing system separation or additional Ground skewers. Since no additional Ground skewers are required for the measurement, you can also use this equipment in hard-to-reach areas.

Type	Earth Ground Meter
Display Type	Digital
Bluetooth interface	true
Calibrated	Manufacturer's standards (no certificate)
Degree of protection (IP)	IP30
Dimensions	(L x W x H) 283 x 105 x 48 mm
Earth loop measurement	true
Height	48mm
Indication	Digital
Interface	true
Internal memory	true
IP Rating	IP30
Length	283mm
Limit value indication	true
Low resistance measurement	false
Measured value memory	true
Measuring of leakage currents with adaptor	true
Measuring Type	Clamp
Misc Attribute	1630-2 FC
Power supply (details)	6V DC
Printer connection	false
Printer integrated	false
Reading range - resistance	0.025 - 1500O
Selective earthing measurement	false
Specific earthing measurement	false
Test current	N/A
Test Frequency	3333 - 3333Hz
Test Voltage	1000V
Weight	880g
Weight, information	incl. batteries
Width	105mm
