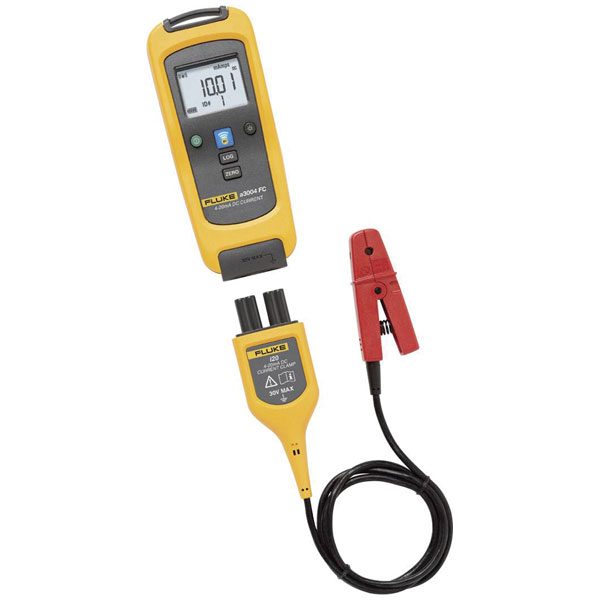

All facts are always at hand. The 4-20 mA Wireless Direct Current Clamp Meter Fluke a 3004 FC is part of a growing family of wireless measuring devices and enables you to record and logging of measurement data over time as well as the sharing of the measured data with the Fluke Connect™-app and the video call function share live™.
With the Fluke Connect-enabled wireless measuring devices, you can in awkward and dangerous places, without itself the danger. The process is very simple. Close the current measuring clamp a 3004 FC or one of the other wireless measurement modules from the Fluke Connect family to the measuring points and read the results from a safe distance on the Fluke Connect a multimeter or a PC.
In addition, the Fluke Connect-measuring devices even measured data to send your smartphone, so that you can save and on-site measurements at any time and anywhere with your team can share. Testing and troubleshooting for 4-20 mA current loops for converters, PLC systems and energy management systems in buildings
.
| Type |
Clamp meter |
| A DC reading range (max.) |
99.9mA |
| Amperage reading range DC (min.) |
0.05mA |
| Analogue bar graph display |
false |
| Basic Accuracy |
0.2% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Capacitance Measurement |
false |
| Continuity test |
false |
| Current measuring range, AC |
N/A |
| Current measuring range, DC |
0.00005 - 0.0999A |
| Current reading |
DC |
| Degree of protection (IP) |
IP42 |
| Dimensions |
(W x H) 63.5 mm x 165 mm |
| Display |
Digital |
| Frequency measurement |
false |
| Harmonics measurement |
false |
| Height |
165mm |
| Indication |
Digital |
| Interface |
true |
| Interfaces |
Bluetooth® |
| Jaw Opening |
4.5mm |
| Leakage current measuring |
true |
| Max. voltage measuring circuit category |
300V |
| Measured value memory |
true |
| Measurement in cables with for- and back conductor |
false |
| Measuring circuit category |
CAT II |
| Measuring range selection |
Automatic |
| Misc Attribute |
FLK-A3004FC |
| Multiple display |
false |
| Opening range of current clamps |
4.5mm |
| Power measuring |
false |
| Power supply (details) |
2 AA batteries |
| Resistance measuring range |
false |
| Temperature measurement |
false |
| True RMS measurement |
N/A |
| Type of current |
DC |
| Version as adaptor to connect to multi meter |
false |
| Voltage measurement, AC |
false |
| Voltage measurement, DC |
false |
| Width |
63.5mm |
| With display backlight |
true |
