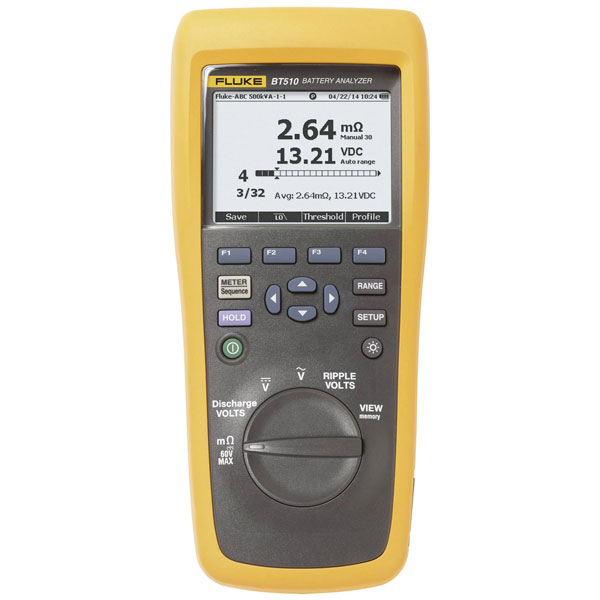

Fluke 4489970 BT510 battery tester, <600V read range, rechargeable.

The new battery tester Fluke 500 series are ideal for the maintenance, troubleshooting and performance testing of individual storage batteries and battery banks used in critical applications with battery backup. The intuitive user interface, compact design and rugged construction ensure optimum performance and reliable test results. The battery tester Fluke 500 series cover a wide range of battery test functions of DC and resistance tests to complete state tests using an automated train functional testing and integrated into the measuring head infrared temperature measurement system. The battery tester 500 series have been specifically designed for measurements on stationary batteries, including gel batteries, AGM (Absorbent Glass Mat) and open cells with float.

Type	Battery Tester
Maximum Capacitance	Not Applicable
Maximum Resistance	Not Applicable
Display Type	LCD
Automatic circuit breaker	false
Bluetooth interface	false
Cable length measurement	false
Cable symmetry testing for two wire connections a-b-E	false
Calibration according to ISO/IEC 17025	N/A
Calibration certificate according to DAkkS	N/A
Capacitance measurement	false
Clip factors for current sensor	N/A
Clip factors for current transformer	N/A
COFRAC certified	N/A
Continuity test	false
Current supply	Battery (rechargeable)/mains
Data hold	true
Degree of protection (IP)	IP40
Depth	58mm
Dim	(W x H x D) 103 x 220 x 58 mm
Duty cycle measurements	false
Explosion-tested version	false
Frequency measurement	true
Harmonics analysis/power quality	false
Height	220mm
High voltage test for motor windings	false
Indication	Digital
Inductance measurement	false
Interface	true
IR interface	false
Isolation resistance measuring range	N/A
Lowest resolution temperature	N/A
Lowest resolution, AC current	N/A
Lowest resolution, AC voltage	100 mV
Lowest resolution, AC/DC current	N/A
Lowest resolution, AC/DC voltage	N/A
Lowest resolution, capacitance	N/A
Lowest resolution, DC current	N/A
Lowest resolution, DC voltage	1 mV
Lowest resolution, frequency	0.1 Hz
Lowest resolution, resistance	Other
Max. capacitance measuring range	N/A
Max. current measuring range with clip factor	N/A
Max. current measuring range, AC	N/A
Max. current measuring range, AC/DC	N/A
Max. current measuring range, DC	N/A
Max. frequency measuring range	0.5kHz
Max. resistance measuring range	0.000003MOhm
Max. temperature measuring range	N/A
Max. value storage	false
Max. voltage measuring circuit category	600V
Max. voltage measuring range AC	600V
Max. voltage measuring range AC/DC	N/A
Max. voltage measuring range DC	600V
Measured value memory	true
Measurement principle	N/A
Measuring circuit category	CAT III
Measuring range selection	Manual
Milliohm measurement with 4 wire technique (Kelvin connection)	true
Min. value storage	false
Misc Attribute	BT510
Multiple display	true
Nominal test voltage 10 V	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	false
Nominal test voltage 250 V	false
Nominal test voltage 50 V	false
Nominal test voltage 500 V	false
Peak value memory	false
Power and energy measurement	false
Power supply	Li-ion rechargeable battery
Reading range	< 600 V
Relative measurement accuracy	N/A
Relative value measurement	false
Resistance test/diode test	false
Rotational speed measuring	false
Scaling bar graph linear	false
Scaling bar graph logarithmic	false
Temperature measurement	false
Temperature measurement RTD	false
Temperature measurement TC	false
True RMS measurement	false
Width	103mm
With conductivity measurement	false
With decibel measurement (dB)	false
With display backlight	true
