The Wireless System Maintenance Technicians Fluke Connect™ offers an ideal opportunity to remain in contact with their teams, without the location to exit. The Fluke Connect™ app works with more than 20 Fluke measuring devices and makes the diagnosis and troubleshooting easier than ever before. Through the use of Fluke Connect™-measuring devices with the app you technician maintenance data from the on-site securely and efficiently capture, storing and sharing. In addition, technicians and managers from anywhere on historical or live data access because they automatically in the Fluke Cloud™ can be stored.
The wireless measuring devices of the flk-3000 FC series of Fluke you for troubleshooting current measured values of several wireless modules at the same time record and clearly on the multimeter or on a remote computer screen. The individually adjustable measuring system is characterised by its robustness, reliability and quality. The Wireless multimeter shows its own measured values and up to 3 wireless modules.
Via the PC ® Adapter, measured values of up to 10 modules can be displayed on the computer. The wireless range is up to 20 feet away! Modules with wireless transmission technology to measure alternating voltage, temperature and alternating current. Select for AC measurements between a true-rms and a flexible true rms clamp-on ammeter. The modules can be combined freely suitable and individually to the measurement requirements.

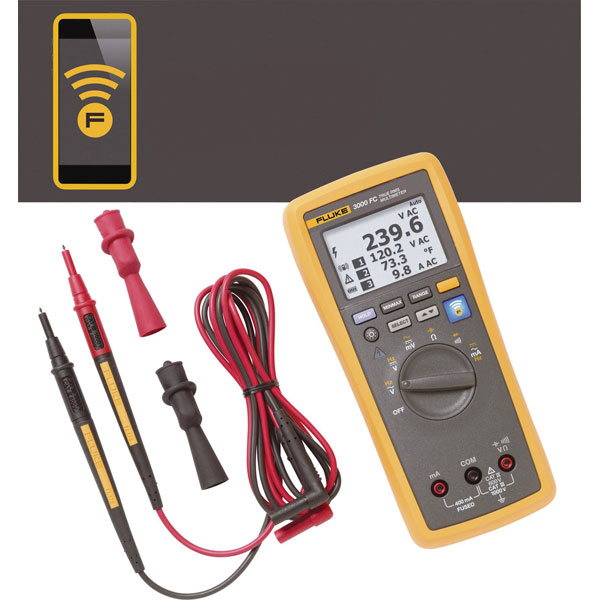

The multimeter is the base for the wireless measuring system FLK-3000 FC. It is intended to be used for the daily measurement tasks as a "normal" multimeter with the usual measuring ranges. As a highlight up to 3 measured values from max. 10 measurement modules is selected and the display can be displayed at the same time. They are up to 4 measurement parameters at the same time can be monitored.
| Type |
Multimeter |
| AC Voltage Max |
1000V |
| DC Voltage Max
|
1000V |
| A AC reading range (min.) |
0.01mA |
| A DC reading range (max.) |
400mA |
| AC resistance |
10MΩ |
| Amperage reading range AC (max.) |
400mA |
| Amperage reading range DC (min.) |
0.01mA |
| Automatic circuit breaker |
false |
| Basic accuracy |
0.09% |
| Bluetooth interface |
true |
| Cable length measurement |
false |
| Cable symmetry testing for two wire connections a-b-E |
false |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Calibration according to ISO/IEC 17025 |
N/A |
| Calibration certificate according to DAkkS |
N/A |
| Capacitance measurement |
true |
| Clip factors for current sensor |
N/A |
| Clip factors for current transformer |
N/A |
| COFRAC certified |
N/A |
| Continuity test |
true |
| Current reading |
AC/DC |
| Current supply |
Battery |
| Data hold |
true |
| Dc Resistance |
10MΩ |
| Degree of protection (IP) |
IP54 |
| Dim |
(W x H) 93 mm x 207 mm |
| Display |
Digital |
| Display Counts |
10000 |
| Duty cycle measurements |
false |
| Explosion-tested version |
false |
| Frequency measurement |
true |
| Frequency reading range |
0.01 Hz - 100kHz |
| Harmonics analysis/power quality |
false |
| Height |
207mm |
| High voltage test for motor windings |
false |
| Indication |
Graphic |
| Inductance measurement |
false |
| Interface |
true |
| Interfaces |
Bluetooth® |
| IR interface |
false |
| Isolation resistance measuring range |
N/A |
| Lowest resolution temperature |
N/A |
| Lowest resolution, AC current |
10 µA |
| Lowest resolution, AC voltage |
0.1 mV |
| Lowest resolution, AC/DC current |
N/A |
| Lowest resolution, AC/DC voltage |
N/A |
| Lowest resolution, capacitance |
0.001 µF |
| Lowest resolution, DC current |
10 µA |
| Lowest resolution, DC voltage |
0.1 mV |
| Lowest resolution, frequency |
0.01 Hz |
| Lowest resolution, resistance |
0.1 Ohm |
| Max. capacitance measuring range |
9999µF |
| Max. current measuring range with clip factor |
N/A |
| Max. current measuring range, AC |
0.06A |
| Max. current measuring range, AC/DC |
N/A |
| Max. current measuring range, DC |
0.06A |
| Max. frequency measuring range |
99.99kHz |
| Max. resistance measuring range |
50MOhm |
| Max. temperature measuring range |
N/A |
| Max. value storage |
true |
| Max. voltage measuring circuit category |
600V |
| Max. voltage measuring range AC |
1000V |
| Max. voltage measuring range AC/DC |
N/A |
| Max. voltage measuring range DC |
1000V |
| Measured value memory |
true |
| Measurement principle |
N/A |
| Measurement type (details) |
True RMS |
| Measuring circuit category |
CAT IV |
| Measuring range selection |
Manual/automatic |
| Milliohm measurement with 4 wire technique (Kelvin connection) |
false |
| Min. value storage |
true |
| Misc Attribute |
FLK-3000 FC |
| Multiple display |
true |
| Nominal test voltage 10 V |
false |
| Nominal test voltage 100 V |
false |
| Nominal test voltage 1000 V |
false |
| Nominal test voltage 250 V |
false |
| Nominal test voltage 50 V |
false |
| Nominal test voltage 500 V |
false |
| Peak value memory |
false |
| Power and energy measurement |
false |
| Power supply (details) |
3 x AA battery |
| Reading range - capacity |
1 nF - 9999µF |
| Reading range - resistance |
1 Ω - 50MΩ |
| Relative measurement accuracy |
N/A |
| Relative value measurement |
false |
| Resistance test/diode test |
true |
| Rotational speed measuring |
false |
| Scaling bar graph linear |
false |
| Scaling bar graph logarithmic |
false |
| Temperature measurement |
false |
| Temperature measurement RTD |
false |
| Temperature measurement TC |
false |
| True RMS measurement |
true |
| V AC reading range (min.) |
0.1mV |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Width |
93mm |
| With conductivity measurement |
false |
| With decibel measurement (dB) |
false |
| With display backlight |
true |
