Listening—and responding—to customers

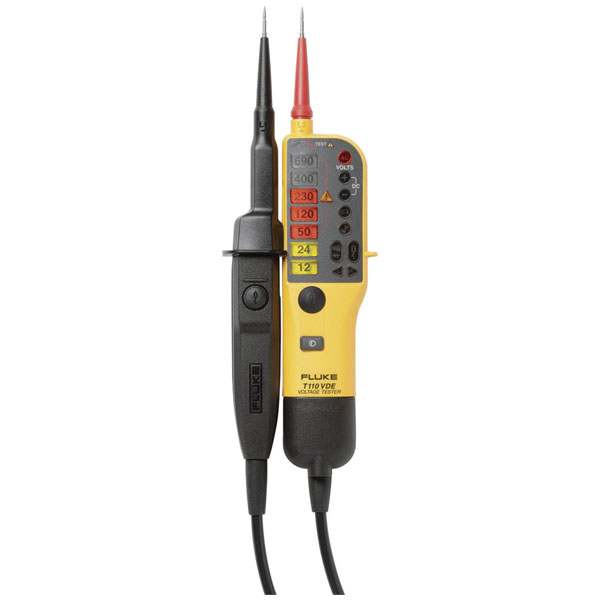

The Fluke two-pole testers are now more rugged and easier to use than ever before.
Fast test results the way you need them, with large, easy-to-use buttons, bright backlights, and clear audible and physical indicators designed for any work situation.
Rugged, high-quality construction is built to last. This includes a heavy duty molded case, a thicker cord with wear indicator, sturdy battery case, and well-fitting and durable probe protector.
Enhanced ergonomic design feels good in your hand, is easy to use (even with gloves on) and quick, secure probe docking.
A complete family of testers with the features, functions, and price/performance to fit your applications and preferences.
| Maximum Voltage |
690V |
| Display Type |
LED |
| Background lighting LC-indication |
false |
| Blade Length |
16mm |
| Blade Width |
2mm |
| Calibrated |
Manufacturer's standards (no certificate) |
| Contactless voltage detection |
false |
| Continuity indication |
Optical/acoustic |
| Continuity test |
true |
| Current supply |
Battery |
| Data hold |
false |
| Dimensions |
(L x W x H) 260 x 70 x 38 mm |
| Frequency Range |
40 Hz - 400 Hz |
| Height |
38mm |
| Indication of direction of field rotation |
true |
| Insulation Test Voltage |
CAT IV |
| Internal base load |
true |
| IP Rating |
IP64 |
| Length |
260mm |
| Load switchable |
true |
| Load switching |
30mA |
| Max. frequency |
400Hz |
| Measuring circuit category |
CAT IV |
| Measuring point lightning |
true |
| Min. frequency |
40Hz |
| Misc Attribute |
T110/VDE |
| Probe tip protection |
true |
| Resistance measurement |
N/A |
| Resistance measuring range |
0 - 400kOhm |
| Single pole phase indication |
true |
| Type |
Voltage Tester |
| Type of test |
2-pole |
| Usable at precipitation |
false |
| V AC reading range (min.) |
12V |
| Voltage indication |
LED |
| Voltage measuring range |
12 - 690V |
| Voltage reading range DC (min.) |
12V |
| Weight |
280g |
| Width |
70mm |
