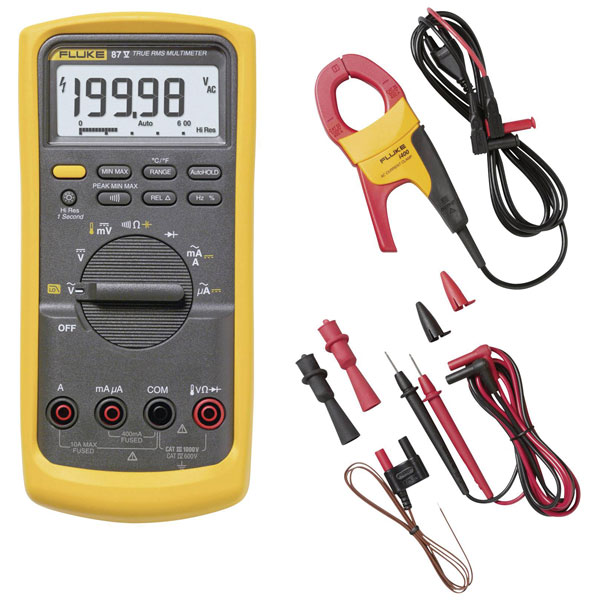

A multimeter with a lot of measurement error and search capabilities to diagnose and solve problems on motor drives, automation, electronics and electro mechanics. The Fluke 87-5/EUR blocks unwanted high frequencies generated by the motor electronics at the touch of a button, enabling precise and stable recording of the most important measurements for motor drives.
Fluke clamp meters are the ideal tools for extending the functionality of Fluke tools. The i400 is an AC current clamp with a single measurement range of 400 A and a current output via shielded 4 mm safety plugs. The clamp is compatible with most Fluke multimeters and all other current measurement instruments that are suitable for shielded 4 mm safety plugs and works in the alternating current range of mA. The division ratio is 1,000:1.
| Type |
Multimeter |
| AC Voltage Max |
1000V |
| DC Voltage Max
|
1000V |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
10A |
| AC resistance |
10 MΩ |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
0.1µA |
| Basic accuracy |
0.05% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(W x H) 98 mm x 201 mm |
| Display |
Digital |
| Display Counts |
20000 |
| Frequency Range |
45 Hz - 20kHz |
| Frequency reading range |
0.01 Hz - 200kHz |
| Height |
201mm |
| Measurement type (details) |
True RMS |
| Measuring and testing instrument for E-Mobility |
false |
| Measuring instrument for air pressure measurement |
false |
| Measuring instrument for current measurement |
true |
| Measuring instrument for gas pressure measurement |
false |
| Measuring instrument for resistance measurement |
true |
| Measuring instrument for temperature measurement |
true |
| Measuring instrument for voltage measurement |
true |
| Measuring instrument-set for training |
false |
| Misc Attribute |
87V IMSK |
| Power supply (details) |
9 V battery |
| Reading range - capacity |
0.01 nF - 9999µF |
| Reading range - resistance |
0.1 Ω - 50 MΩ |
| Temperature |
-200 to +1090°C |
| Testing device for continuity |
true |
| Testing device for flue gas analysis |
false |
| Testing device for isolation |
false |
| Testing device for loop resistance |
false |
| Testing device for phase sequence |
false |
| Testing device for photovoltaics |
false |
| Testing device for RCD/earth leakage switch |
false |
| Testing device for voltage |
false |
| V AC reading range (min.) |
0.1mV |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Width |
98mm |
