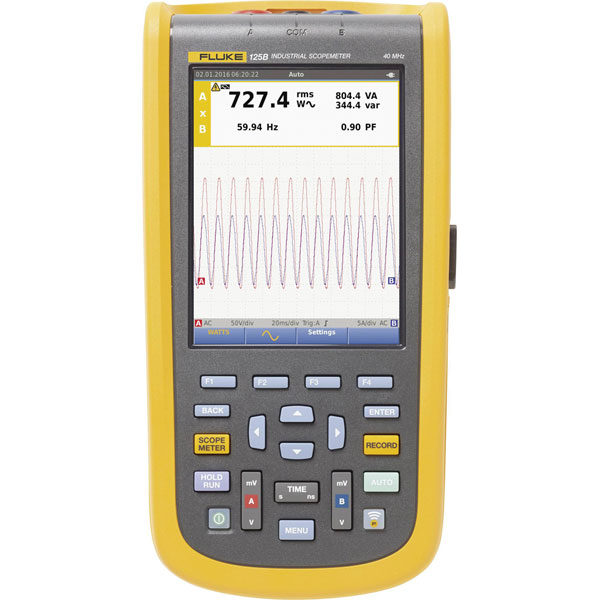

Fluke 125B/EU/S Handheld oscilloscope 40MHz 2-channel 4GS/s Multimeter

The Scopemeter industry oscilloscope of the series 120 B contain innovative features that will allow technicians in troubleshooting accelerate and in the light of the results of their systems ready for operation. Waveform display with the trigger and configuration technology Connect-and-View™ as well as automatic display related measurement results are set with the help of the Fluke-Intella™ technology - and all this without any manual settings. With the help of the "Recorder Event Detect" functions are difficult to be detected intermittent events recorded and logged and can be easily displayed and analyzed.

No. of Channels	2
Bandwidth	40MHz
Type	Oscilloscope
Manufacturers Warranty	1 Year
Screen Size	"14.5 cm (5.7"")"
Capacitance Measurement	true
Current supply	Battery (rechargeable)
Forming of reference signal	true
Frequency bandwidth	40MHz
Frequency measurement	true
Interface	true
Lowest input sensitivity	5mV
Max. current measuring range, AC	750A
Max. current measuring range, DC	750A
Max. voltage measuring range AC	750V
Max. voltage measuring range DC	750V
Measured value memory	true
Monitor	Colour/digital
Number of Channels	2
Resistance test/diode test	true
Selectable pulse width triggering	N/A
Temperature measurement	true
