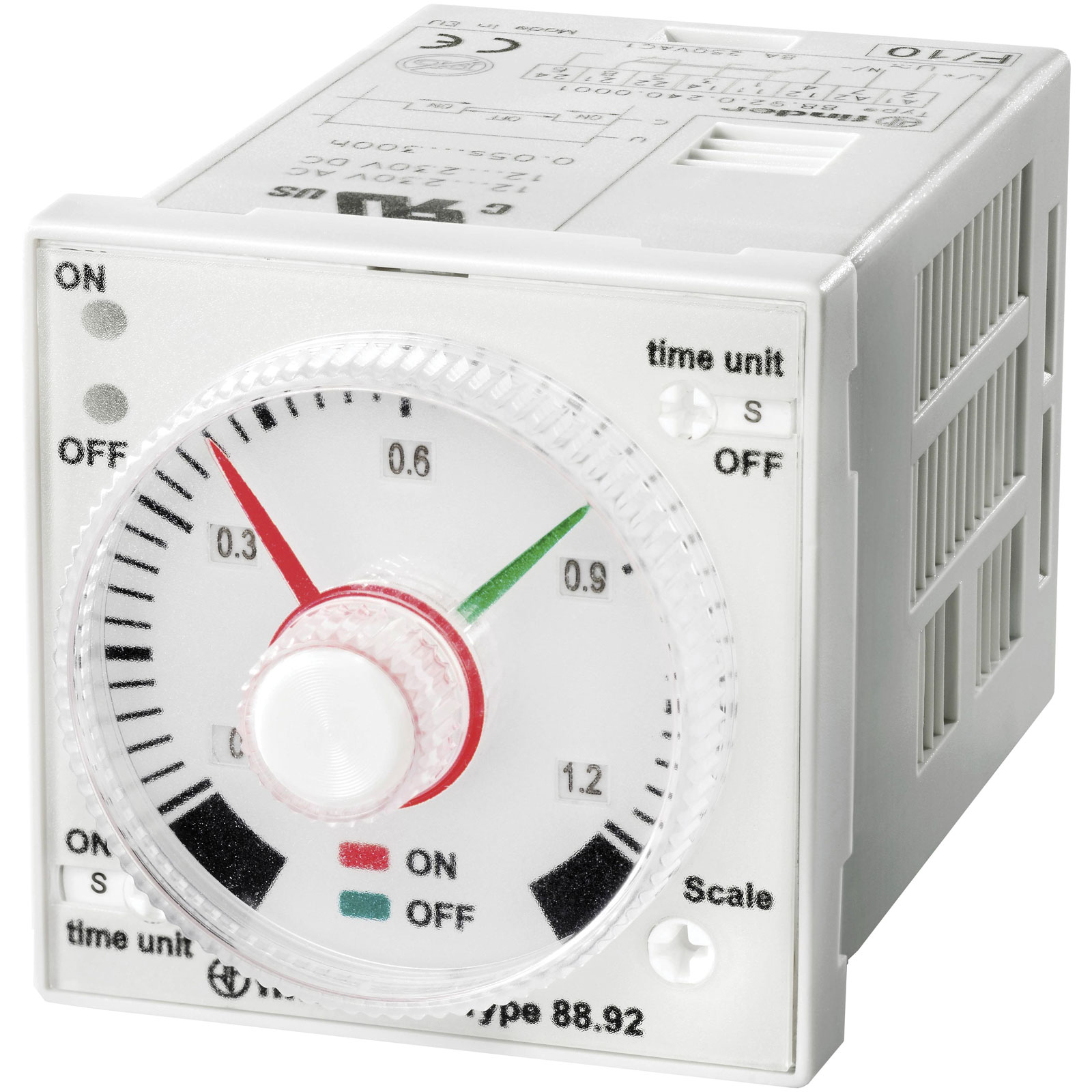

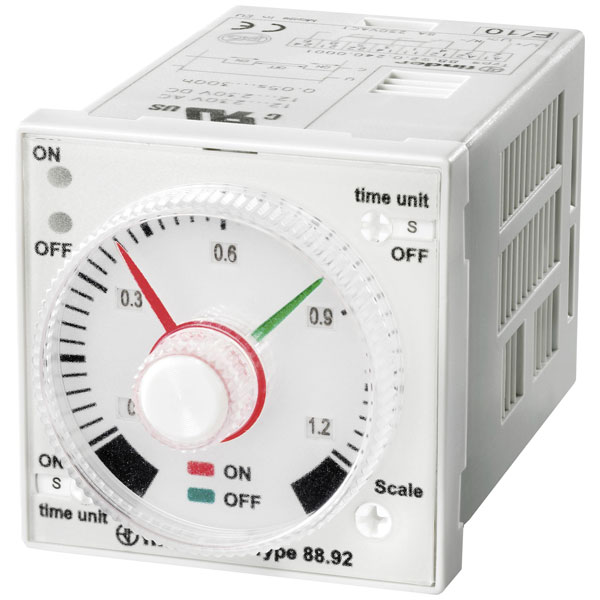

The Finder time delay relay 88.92.0.240.0000 is a multifunction relay designed for front-mounting with a time range of 1.2 to 1,080,000 seconds and two change-overs. This DIN rail mount relay is suitable for applications requiring precise time delay functionality, such as controlling the timing in lighting systems and industrial automation processes. Its robust design makes it ideal for use in environments needing surge protection and reliable timing operations.
| Type |
TDR (front-mount) |
| Clock functio , tarting with pause, riable |
true |
| Clock functio , tarting with pulse, riable |
false |
| Connection |
Connector |
| Contact Configuration |
2 hange-overs°C |
| Depth |
98.7mm |
| Dim (W x H x D) |
57.6 x 48.3 x 98.7mm |
| EF003360 |
true |
| Function delay on de-energization |
false |
| Function delay-on energization |
false |
| Function flashin , tarting with pause, fixed time |
false |
| Function flashin , tarting with pulse, fixed time |
false |
| Function floating contact on de-energization |
false |
| Function floating contact on energization |
false |
| Function pulse shaping |
false |
| Function star-delta |
false |
| Functions |
Impulse OFF through contact timer |
| Height |
48.3mm |
| Max. operating voltage |
240V DC/AC |
| Min. operating voltage |
12V DC/AC |
| Nominal Current |
8A |
| Number of output , delayed, ormally closed contact |
0 |
| Number of output , delayed, ormally open contact |
0 |
| Number of output , undelayed, hange-over contact |
0 |
| Number of output , undelayed, ormally closed contact |
0 |
| Number of output , undelayed, ormally open contact |
0 |
| Number of outputs, delayed, change-over contact |
2 |
| Operating Voltage |
12 - 240 DC/ACV |
| Output , reversible delayed/undelayed |
falses |
| Pluggable on auxiliary contact block |
false |
| Rated control supply voltage AC 50 Hz |
240 - 240V |
| Rated control supply voltage AC 60 Hz |
240 - 240V |
| Rated control supply voltage DC |
240 - 240V |
| Remote operation possible |
false |
| Suitable as remote control |
false |
| Suitable for DIN rail (top hat rail) mounting |
false |
| Suitable for front mounting |
true |
| Switching current (max.) |
8A |
| Time Range |
0.05 - 360000s |
| Time range (max.) |
1080000s |
| Time range (min.) |
1.2s |
| Type of electric connection |
Plug-in connection |
| Voltage type for actuating |
AC/DC |
| Width |
57.6mm |
| With semiconductor output |
false |
