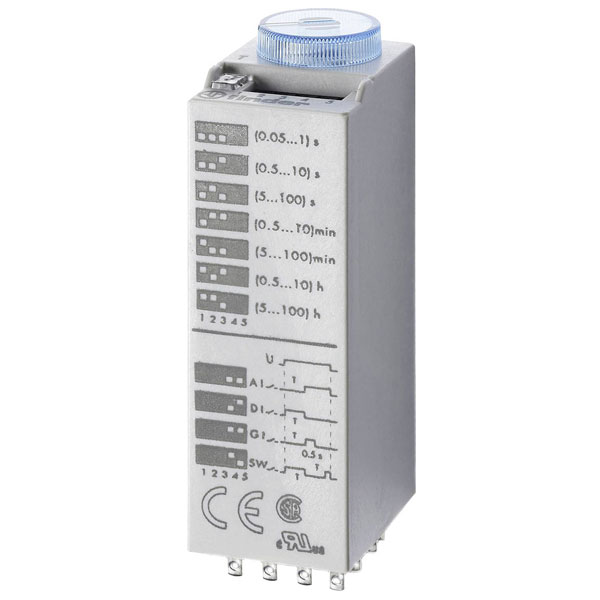

Finder 85.04.0.048.0000 TDR multifunction timer Relay 4 changeovers

Finder
Order Code:

03-4585

Brand: Finder MPN: 85.04.0.048.0000 EAN-13: 8012823275581
Qty Was Unit Price (Ex VAT)
1+ £46.66 £46.34
5+ £46.30 £45.98
10+ £45.96 £45.64
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

Manufactured by Finder, the 85.04.0.048.0000 is a multifunction time delay relay with four change-overs. This relay is designed for rail mounting and offers surge protection, making it ideal for various timing and switching applications. Typical uses include controlling staircase lighting and other time-dependent functions.
Type TDR
Clock function, starting with pause, variable false
Clock function, starting with pulse, variable true
Connection Screw terminal
Contact Configuration 4 change-overs
Contact Material AgNi
Depth 27.7mm
EF003360 true
Electrical lifespan 150 · 10³
Function delay on de-energization false
Function delay-on energization true
Function flashing, starting with pause, fixed time false
Function flashing, starting with pulse, fixed time false
Function floating contact on de-energization false
Function floating contact on energization true
Function pulse shaping true
Function star-delta false
Height 63.1mm
IP Rating IP40
Max. temperature 60°C
Min. temperature -20°C
Misc Attribute 2 Multifunction
Nominal Current 10A
Number of outputs, delayed, change-over contact 4
Number of outputs, delayed, normally closed contact 0
Number of outputs, delayed, normally open contact 0
Number of outputs, undelayed, change-over contact 0
Number of outputs, undelayed, normally closed contact 0
Number of outputs, undelayed, normally open contact 0
Outputs, reversible delayed/undelayed false
Pluggable on auxiliary contact block false
Rated control supply voltage AC 50 Hz 48 - 48V
Rated control supply voltage AC 60 Hz 48 - 48V
Rated control supply voltage DC 48 - 48V
Remote operation possible false
Suitable as remote control false
Suitable for DIN rail (top hat rail) mounting false
Suitable for front mounting false
Switching current (max.) 15A
Switching voltage (max.) 250V AC
Time range 0.05 - 360000s
Type of electric connection Plug-in connection
Voltage type for actuating AC/DC
Width 20.6mm
With semiconductor output false
