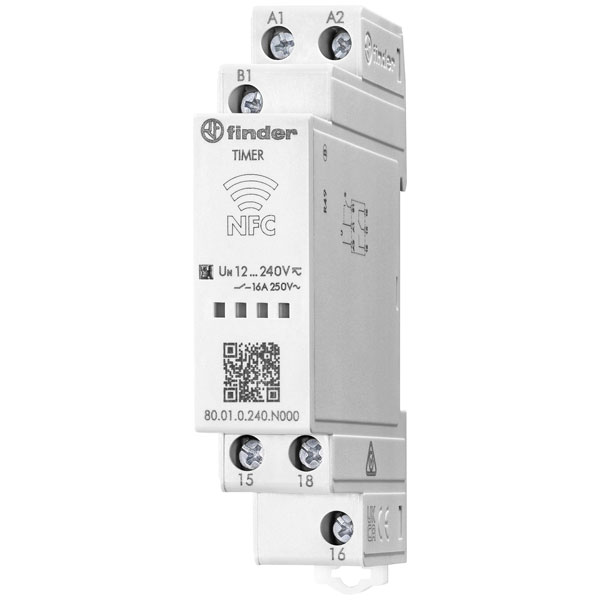

Finder 80010240N000 Series 80 Timer Relay 2s to 24h Multifunction 1pc

Finder 80010240N000 Series 80 Timer Relay, also referenced as 3389756, is a versatile multifunction timing device engineered for precise control across applications requiring time delays ranging from 2 seconds to 24 hours. This product offers robust performance in automation systems where accurate timing is critical, such as in industrial process control, building automation, and machinery operation sequencing. With its capacity to handle a wide range of input voltages and its adaptability to various timer functions, the timer relay ensures reliability and precision, making it a valuable component in both complex and straightforward engineering environments.

Type	80.01.0.240.N000
Clock function, starting with pause, variable	N/A
Clock function, starting with pulse, variable	N/A
Connection	Screw terminal
Contact Material	AgNi
Content	1
Depth	88.8mm
Dimensions	(W x H x D) 17.5 x 60.8 x 88.8 mm
EF003360	false
Function delay on de-energization	true
Function delay-on energization	true
Function flashing, starting with pause, fixed time	false
Function flashing, starting with pulse, fixed time	false
Function floating contact on de-energization	true
Function floating contact on energization	true
Function pulse shaping	N/A
Function star-delta	false
Height	60.8mm
IP Rating	IP20
Max. switching capacity	4000VA
Maximum Temperature	60°C
Minimum Temperature	-20°C
Nominal Current	16A
Number of outputs, delayed, change-over contact	1
Number of outputs, delayed, normally closed contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, undelayed, change-over contact	N/A
Number of outputs, undelayed, normally closed contact	N/A
Number of outputs, undelayed, normally open contact	N/A
Operating Voltage	12, 12 - 240, 240 V AC, V DC
Outputs, reversible delayed/undelayed	N/A
Pluggable on auxiliary contact block	N/A
Product Type	TDR
Rated control supply voltage AC 50 Hz	12 - 240V
Rated control supply voltage AC 60 Hz	12 - 240V
Rated control supply voltage DC	12 - 240V
Remote operation possible	false
Suitable as remote control	false
Suitable for DIN rail (top hat rail) mounting	true
Suitable for front mounting	false
Switching current (max.)	16A
Switching voltage (max.)	400V AC
Time range	0.1 - 86400s
Time range (max.)	24h
Time range (min.)	2s
Type of electric connection	Screw connection
Voltage type for actuating	AC/DC
Width	17.5mm
With semiconductor output	false
