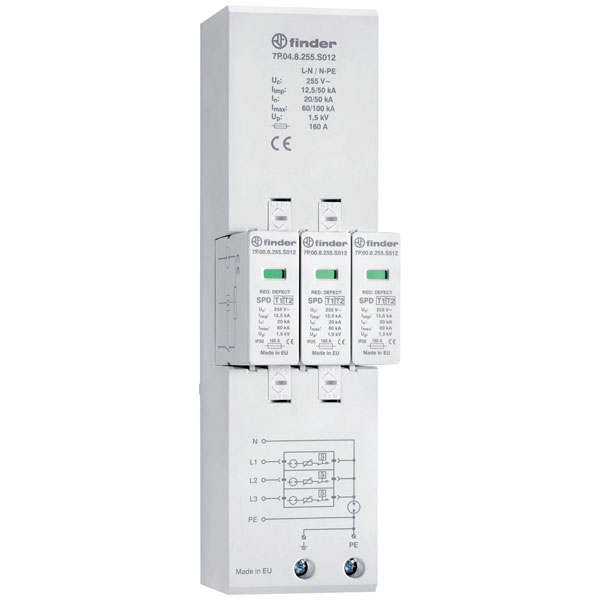

Finder 7P.04.8.255.S012 Surge arrester for 40 mm busbar 7.5 kA per path

Finder
Order Code:

03-4520

Brand: Finder MPN: 7P.04.8.255.S012 EAN-13: 8012823429724
Qty Unit Price (Ex VAT)
1+ £222.41
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

Manufactured by Finder, the 7P.04.8.255.S012 surge arrester is designed to protect electrical systems from overvoltage. It features high-performance surge protection, ensuring the safety and longevity of electronic devices. Typical applications include safeguarding residential and commercial electrical installations against lightning and power surges.
Type Surge arrester
Category type 2 false
Construction size 8 modular spacing
Degree of protection (IP) IP20
Depth 102mm
Dim (W x H x D) 54 x 207 x 102 mm
Height 207mm
Integrated backup fuse false
Integrated short-circuit protection N/A
Integrated short-circuit protection selective to fuse gG N/A
Leakage-current free true
Max. conductor cross section flexible (fine-strand) N/A
Max. conductor cross section solid (solid, stranded) N/A
Max. continuous voltage AC 260V
Max. continuous voltage DC N/A
Max. discharge surge current (8/20) 60kA
Max. overcurrent protection device, parallel connection (fuse) 250A
Max. overcurrent protection device, series connection (fuse) 125A
Max. PV-voltage N/A
Misc Attribute SPD type 1+2
Mounting method DIN rail (top hat rail) 35mm
Nominal discharge surge current (8/20) 30kA
Nominal voltage AC 230V
Nominal voltage DC N/A
Number of conductors (without earthing) 4
Operating Temperature -40 - +80°C
Short-circuit breaking capacity (Isccr) 50kA
Signalling at the device Optical
System configuration DC false
System configuration IT false
System configuration other false
System configuration TN false
System configuration TN-C false
System configuration TN-C-S false
System configuration TN-S true
System configuration TT true
Voltage protection level N/A
Voltage protection level L-N 1.5kV
Voltage protection level N-PE 1.5kV
Voltage Rating 230V AC
Width 54mm
With remote signalling contact false
