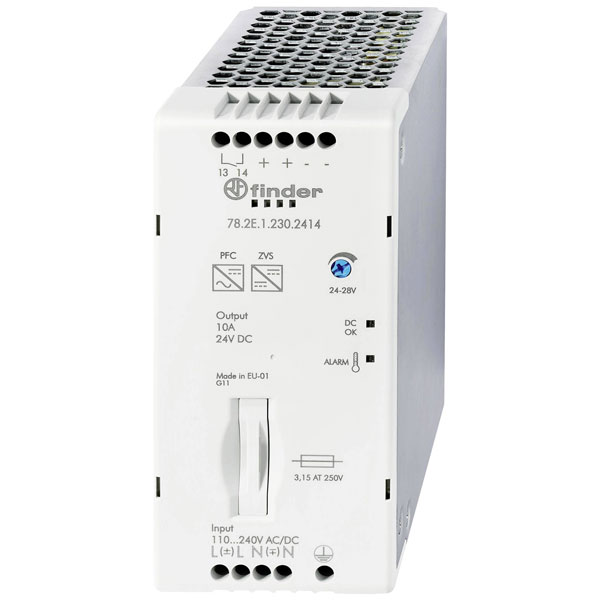

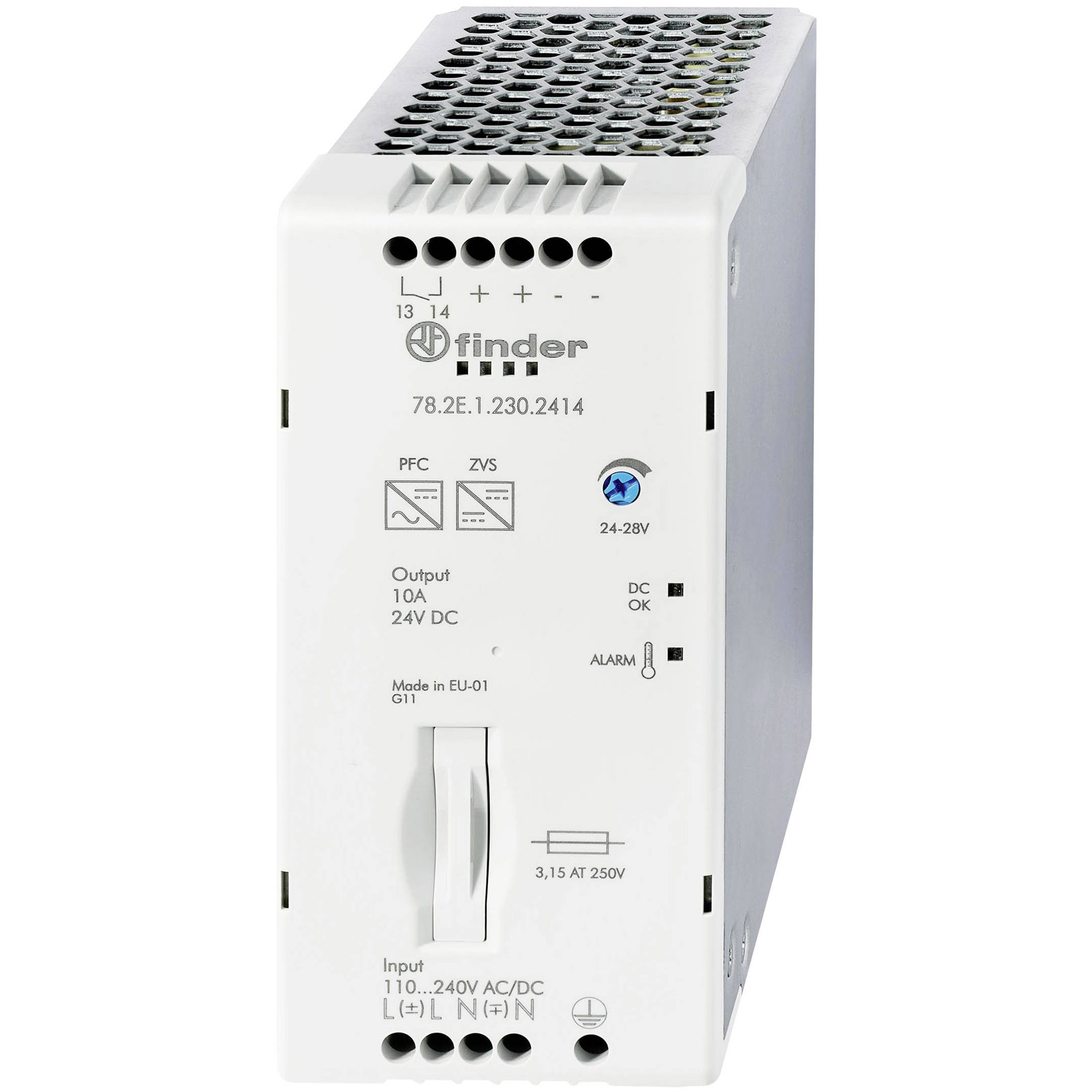

The Finder 78.2E.1.230.2414 is a rail-mounted power supply unit designed for DIN rail installation, providing 24 V DC at 10.8 A with a power output of 240 W. It is typically used in industrial applications for reliable and consistent power distribution. Its design makes it ideal for efficient space management in electrical cabinets.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24V DC |
| Output Current |
10.8A |
| Power Rating |
240W |
| 1st secondary output voltage |
24 - 28V |
| Built-in height |
N/A |
| Built-in width |
N/A |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
125mm |
| Direct mounting possible |
N/A |
| Efficiency |
93% |
| Height |
130mm |
| Input Voltage |
110 - 240V AC |
| IP Rating |
IP20 |
| Max. output current |
10.8A |
| Max. output current 1 |
10.8A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Max. temperature |
+70°C |
| Min. temperature |
-20°C |
| Misc Attribute 2 |
Switched PSU |
| Nominal Input Voltage |
110 - 240 V/AC |
| Nominal value output current 1 |
10A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
None |
| Power Consumption |
275VA |
| Power Output |
240W |
| Rated supply voltage AC 50 Hz |
110 - 240V |
| Rated supply voltage AC 60 Hz |
110 - 240V |
| Rated supply voltage DC |
110 - 240V |
| Secondary voltage adjustable |
false |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| Type of electric connection |
Screw connection |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
false |
| Width |
60mm |
| Width in number of modular spacings |
N/A |
