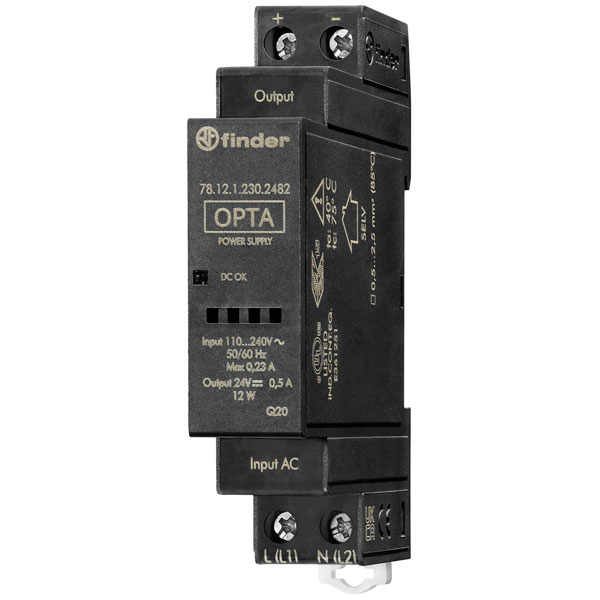

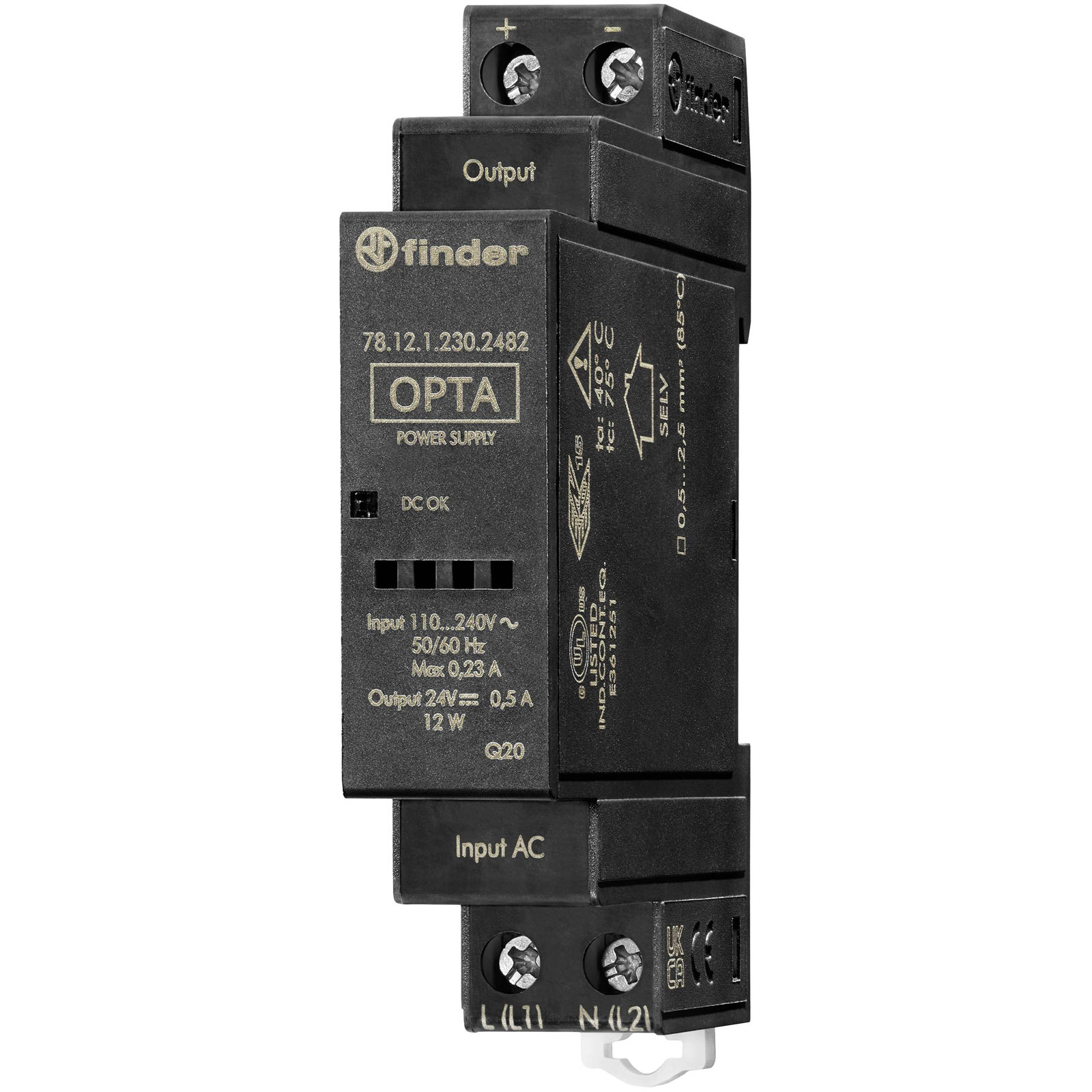

Finder 78.12.1.230.2482 Rail mounted PSU 24V DC 0.63A 12W 1pc(s)

Finder
Order Code:

03-4419

Brand: Finder MPN: 78.12.1.230.2482 EAN-13: 8012823446868
Qty Unit Price (Ex VAT)
1+ £42.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
40 in stock, despatched in 4 working days

The Finder 78.12.1.230.2482 is a rail-mounted PSU with specifications of 24 V DC, 0.63 A, and 12 W. This industrial power supply unit is designed for easy integration onto DIN rails, making it ideal for automation and control systems in industrial settings. Its compact and efficient design ensures reliable power delivery in various installations where space is a premium.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 630mA
Power Rating 12W
1st secondary output voltage 24 - 24V
Built-in height N/A
Built-in width N/A
Connection Screw terminal
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 56.5mm
Dim (L x W x H) 60.8 x 17.5 x 88.8 mm
Direct mounting possible N/A
Efficiency 85%
Height 88.8mm
IP Rating IP20
Length 60.8mm
Max. output current 0.63A
Max. output current 1 0.63A
Max. output current 2 N/A
Max. output current 3 N/A
Max. temperature +40°C
Min. temperature -20°C
Nominal Input Voltage 110 - 240 V/AC
Nominal value output current 1 0.5A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Output type (power supply units) Fixed voltage
Output voltage stabilized true
Performance level according to EN ISO 13849-1 None
Power Consumption 28.2VA
Power Output 12W
Rated supply voltage AC 50 Hz 110 - 240V
Rated supply voltage AC 60 Hz 110 - 240V
Rated supply voltage DC 220 - 220V
Secondary voltage adjustable false
Short-circuit-proof true
SIL according to IEC 61508 None
Stabilized true
Suitable for distribution board true
Suitable for rail mounting true
Suitable for safety functions false
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Wall mounting possible false
Width 17.5mm
Width in number of modular spacings 1
