Finder 77C290248671 SSR 50 A 660 V AC Instantaneous 1pc

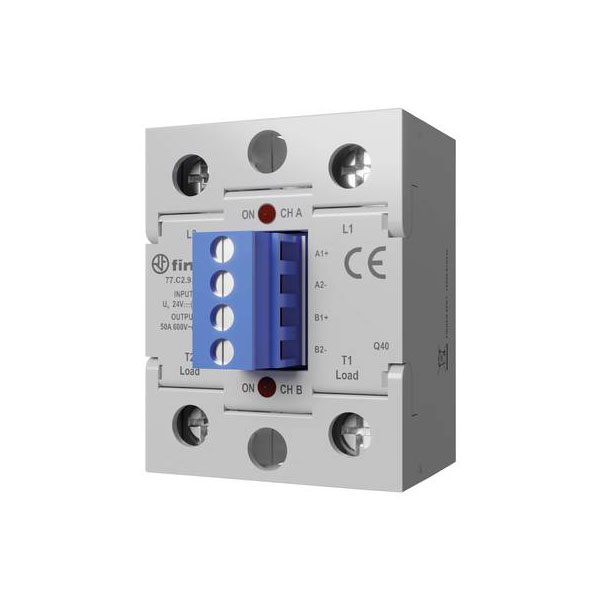

Image Representative of Range

Finder 77C290248671 SSR 50 A 660 V AC Instantaneous 1pc

Finder
Order Code:

03-4409

Brand: Finder MPN: 77C290248671 EAN-13: 8012823450612
Qty Unit Price (Ex VAT)
1+ £68.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Finder SSR 77C290248671 is a solid state relay with a maximum switching voltage of 660 V AC and a current rating of 50 A. It features zero crossing technology for efficient and reliable switching. This electronic relay is typically used in applications such as industrial automation and motor control.
Type SSR
Contact Configuration DPST-NO
Switching Current 660V AC
Switching Voltage 600V AC
Length 58.40mm
Width 54.70mm
Height 46mm
Current load (max.) 50A
IP Rating IP20
Max. temperature +80°C
Min. temperature -30°C
Misc Attribute 77.C2.9.024.8671
Number of phases 2
Operating Voltage 24 - 660
Permanent current (max.) 50A
Rated control supply voltage DC 24 - 24V
Rated operation current Ie at AC-1 50A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing false
Switching type Instantaneous
Switching voltage (min.) 24V AC
Voltage type for actuating DC
