Finder 77A382308671 SSR 25A 660V AC Switching 1pc instantaneous

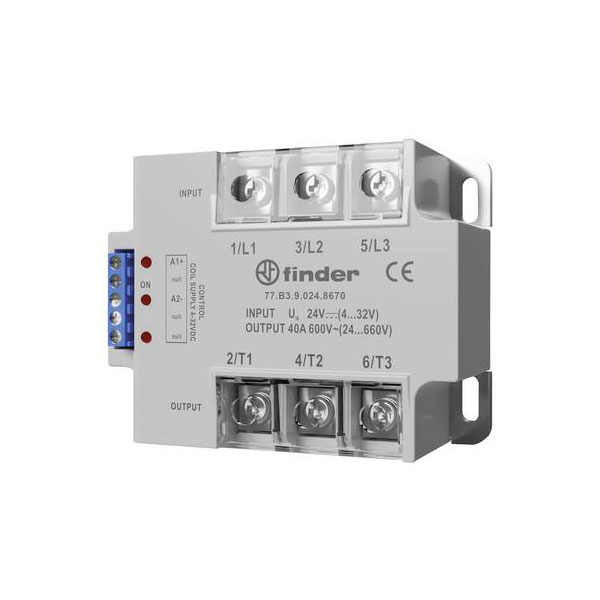

Image Representative of Range

Finder 77A382308671 SSR 25A 660V AC Switching 1pc instantaneous

Finder
Order Code:

03-4401

Brand: Finder MPN: 77A382308671 EAN-13: 8012823452210
Qty Unit Price (Ex VAT)
1+ £92.84
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Finder SSR 77A382308671 is an electronic relay capable of switching voltages up to 660 V AC with a current rating of 25 A. This solid state relay features zero crossing switching, enhancing power efficiency and reducing electrical noise. It's typically used in industrial automation and control systems for reliable and instantaneous switching.
Type SSR
Switching Current 660V AC
Switching Voltage 600V AC
Length 105mm
Width 78mm
Height 38mm
Contact Type 3 makers
Current load (max.) 25A
IP Rating IP20
Max. temperature +80°C
Min. temperature -30°C
Misc Attribute 77.A3.8.230.8671
Number of phases 3
Operating Voltage 24 - 660
Permanent current (max.) 25A
Rated control supply voltage AC 50 Hz 230 - 230V
Rated control supply voltage AC 60 Hz 230 - 230V
Rated operation current Ie at AC-1 25A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing false
Switching type Instantaneous
Switching voltage (min.) 24V AC
Voltage type for actuating AC
