Finder 77A190248250 SSR 25A 280VAC Zero crossing 1pc

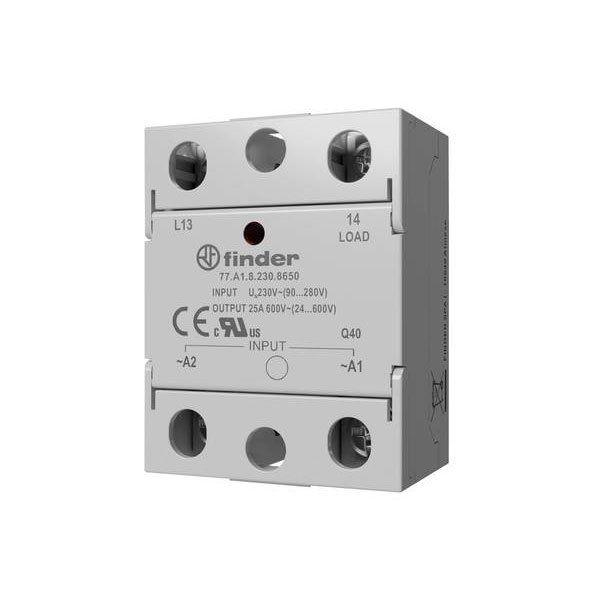

Image Representative of Range

Finder 77A190248250 SSR 25A 280VAC Zero crossing 1pc

Finder
Order Code:

03-4398

Brand: Finder MPN: 77A190248250 EAN-13: 8012823451954
Qty Unit Price (Ex VAT)
1+ £19.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
66 in stock, despatched in 4 working days

Finder's SSR 77A190248250 is a solid state relay with a maximum switching voltage of 280 V AC and a current rating of 25 A. Featuring zero crossing technology, it ensures minimal electrical noise and efficient operation in AC applications. This relay is ideal for use in industrial automation and HVAC systems where reliable, noise-free switching is crucial.
Type SSR
Contact Configuration SPST-NO
Switching Current 25A
Length 59mm
Width 45mm
Height 29.40mm
IP Rating IP20
Max. temperature +80°C
Min. temperature -30°C
Misc Attribute 77.A1.9.024.8250
Number of phases 1
Operating Voltage 24 - 280
Permanent current (max.) 25A
Rated control supply voltage DC 24 - 24V
Rated operation current Ie at AC-1 25A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing true
Switching type Zero crossing
Switching voltage (min.) 24V AC
Voltage type for actuating DC
