Finder 77A182308250 SSR 25 A 280 V AC Zero Crossing Single Piece

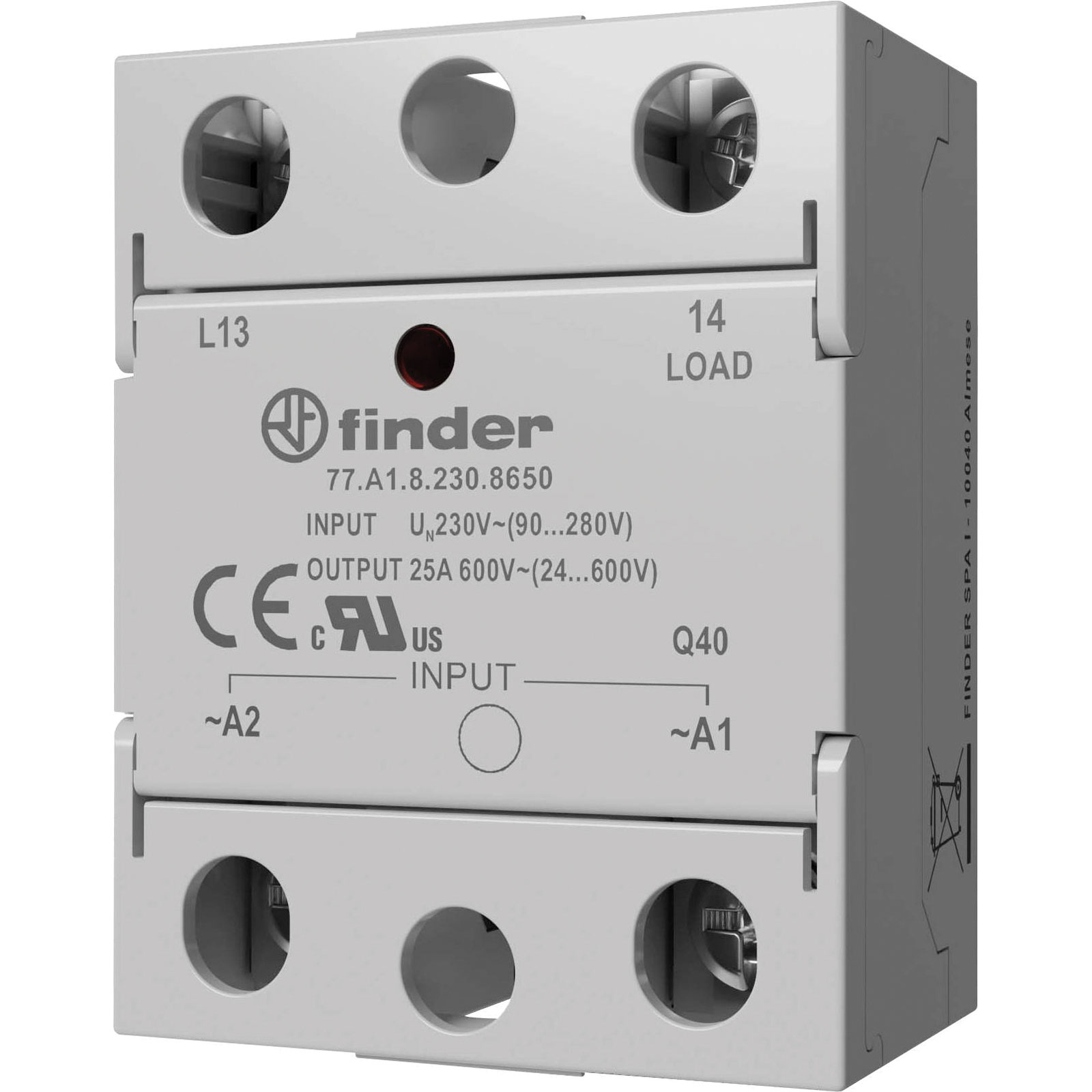

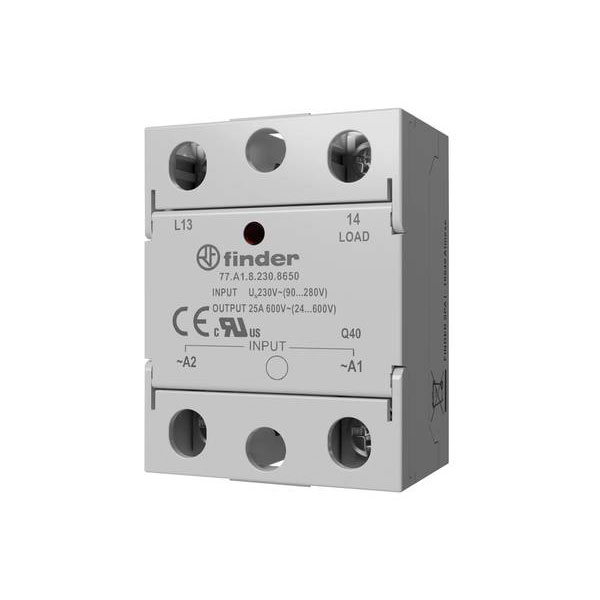

Image Representative of Range

Finder 77A182308250 SSR 25 A 280 V AC Zero Crossing Single Piece

Finder
Order Code:

03-4396

Brand: Finder MPN: 77A182308250 EAN-13: 8012823452012
Qty Unit Price (Ex VAT)
1+ £23.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
21 in stock, despatched in 4 working days

The Finder 77A182308250 is a solid state relay designed for efficient switching, with a maximum switching voltage of 280 V AC. Featuring zero crossing functionality, it is ideal for applications requiring noise reduction and extended relay life in lighting and industrial controls. This electronic relay benefits any application needing reliable and quiet operations.
Type SSR
Contact Configuration SPST-NO
Switching Current 25A
Length 59mm
Width 45mm
Height 29.40mm
IP Rating IP20
Max. temperature +80°C
Min. temperature -30°C
Misc Attribute 77.A1.8.230.8250
Number of phases 1
Operating Voltage 24 - 280
Permanent current (max.) 25A
Rated control supply voltage AC 50 Hz 230 - 230V
Rated control supply voltage AC 60 Hz 230 - 230V
Rated operation current Ie at AC-1 25A
Rated operation current Ie at AC-3 N/A
Rated operation current Ie at AC-51 N/A
Rated operation current Ie at AC-53a N/A
Rated operation current Ie at AC-53b N/A
Suitable for distribution board true
Switching at zero-crossing true
Switching type Zero crossing
Switching voltage (min.) 24V AC
Voltage type for actuating AC
