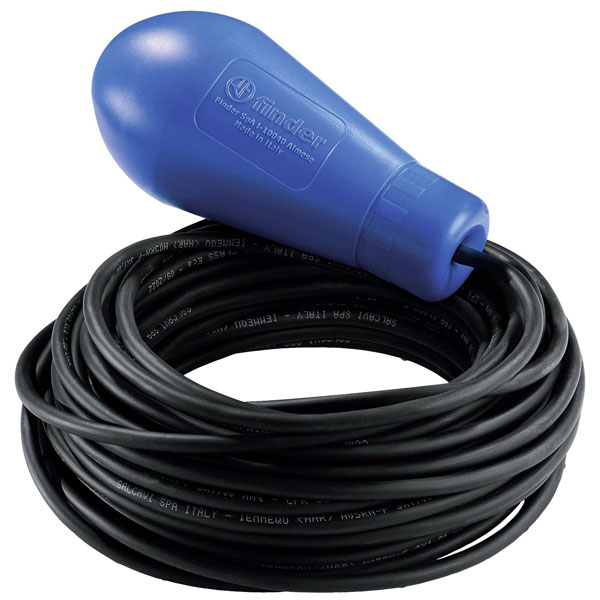

Finder 72.B1.1.000.2001 Float Switch Filling/Draining 20m 1pc

Produced by Finder, the float switch 72.B1.1.000.2001 is designed for applications up to 20 metres deep. This device features reliable filling and draining capabilities suitable for managing liquid levels in tanks or reservoirs. Typical uses include water management systems, agricultural irrigation, and industrial fluid control.

Type	Float switch
Cable Length	20m
Maximum Voltage	250V
Current Rating	10A
Adjustable differential gap	false
Connection	N/A
Contact Type	1 change-over
Degree of protection (IP)	IP68
Degree of protection (NEMA)	N/A
Explosion-proof	false
Float diameter	81.2mm
Horizontal mounting	false
Immersing depth	20000mm
IP Rating	IP68
Material	PP
Material float	Plastic
Max. contact load	10A
Max. contact voltage	250V
Max. medium temperature (continuous)	50°C
Max. operating pressure	N/A
Max. temperature	+45°C
Maximum Current	6A
Min. specific density of liquid	N/A
Mounting method	Standing in the pit
Readable	false
Sensor/feeler type	Pear-shape
Suitable for condensate	false
Suitable for cooling water	true
Suitable for domestic wastewater	false
Suitable for faeces	true
Suitable for glycol	true
Suitable for potable water	false
Suitable for rainwater	true
Switching Voltage	250V AC
Thread Size	N/A
Vertical mounting	true
With display	false
