Finder 72.A1.1.000.2001 float Switch 20m cable IP68 10A 45°C 10 BAR

Finder
Order Code:

03-4388

Brand: Finder MPN: 72.A1.1.000.2001 EAN-13: 8012823445618
Qty Unit Price (Ex VAT)
1+ £67.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

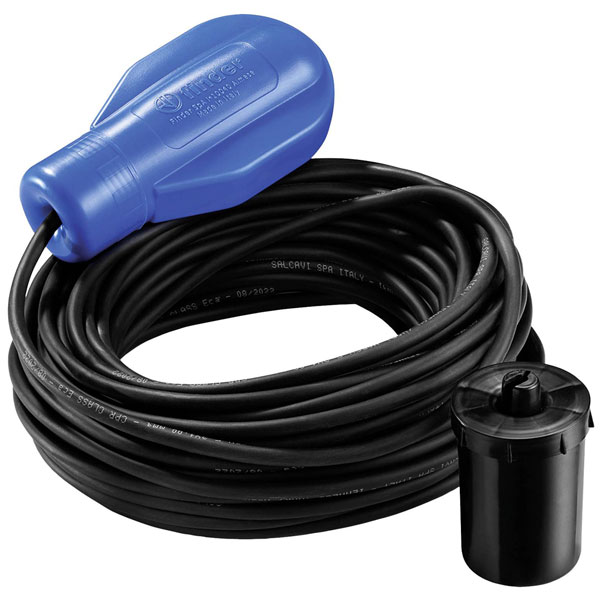

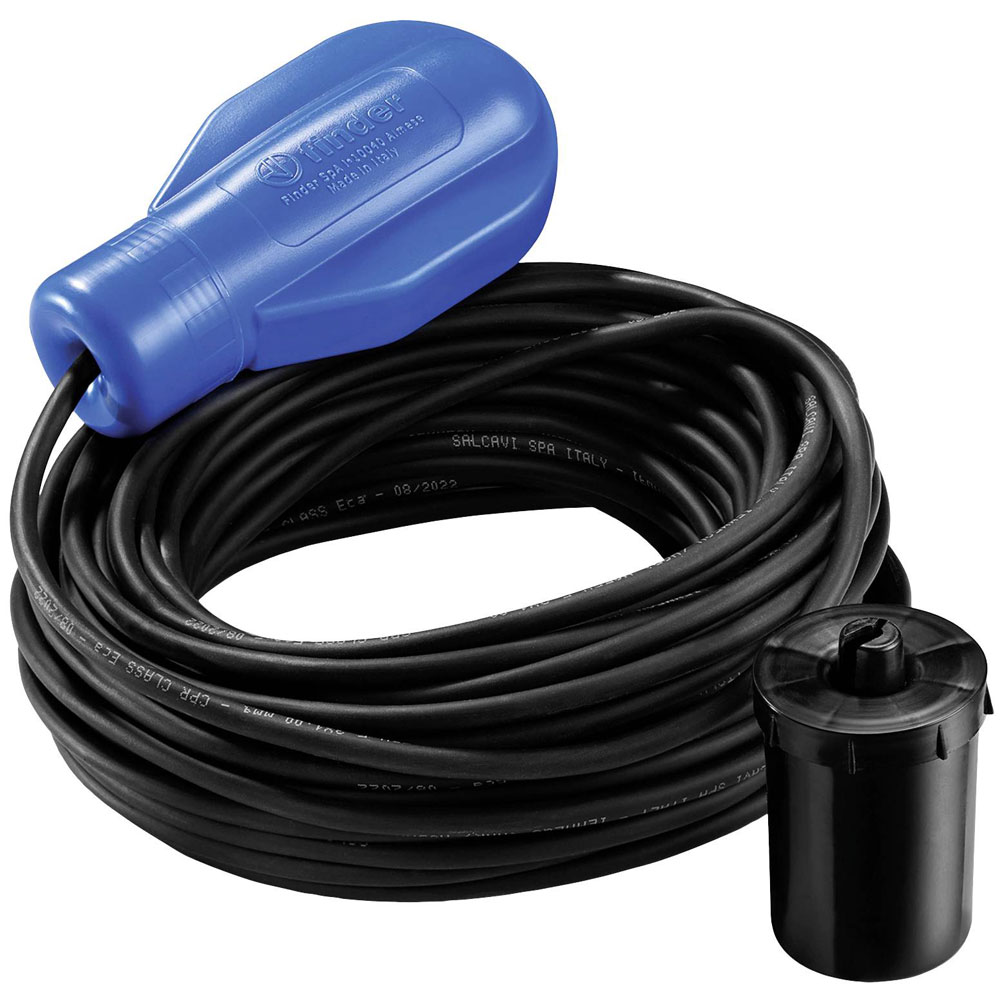

The float switch by Finder is a versatile component designed for both filling and draining applications. It features a measurement capacity of up to 20 metres. Typically used in liquid level management systems, it ensures efficient fluid control.
Type Float switch
Cable Length 20m
Adjustable differential gap false
Connection N/A
Contact Type 1 change-over
Degree of protection (IP) IP68
Degree of protection (NEMA) N/A
Explosion-proof false
Float diameter 75mm
Horizontal mounting false
Immersing depth 40000mm
IP Rating IP68
Material PP
Material float Plastic
Max. contact load 10A
Max. contact voltage 250V
Max. medium temperature (continuous) 50°C
Max. operating pressure N/A
Max. temperature +45°C
Maximum Current 6A
Min. specific density of liquid N/A
Mounting method Standing in the pit
Readable false
Sensor/feeler type Other
Suitable for condensate true
Suitable for cooling water true
Suitable for domestic wastewater true
Suitable for faeces false
Suitable for glycol false
Suitable for potable water false
Suitable for rainwater true
Switching Voltage 250V AC
Thread Size N/A
Vertical mounting true
With display false
