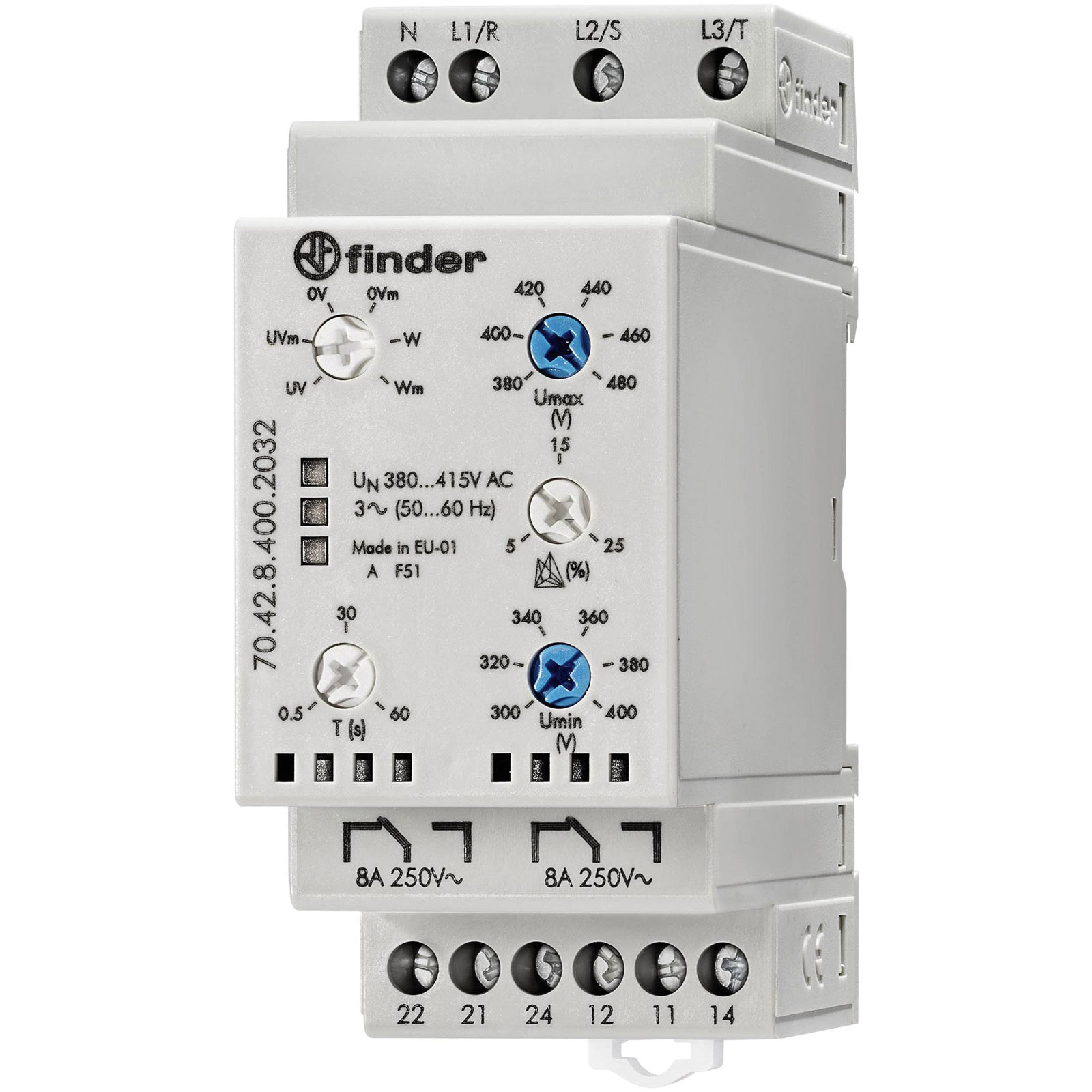

Finder 70.42.8.400.2032 monitoring Relay 380-415V 2 changeovers

Finder
Order Code:

03-4377

Brand: Finder MPN: 70.42.8.400.2032 EAN-13: 8012823398945
Qty Unit Price (Ex VAT)
1+ £113.96
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Finder monitoring relay 70.42.8.400.2032 is designed for operation within a voltage range of 380 to 415 V AC. It features two change-overs, making it ideal for monitoring electrical parameters in industrial and commercial settings. Typical applications include ensuring system reliability and protection in power distribution and automation systems.
Type Monitoring relay
Contact Material AgNi
Contact Type 2 change-overs
Contains function DC overvoltage false
Contains function DC-under voltage false
Contains function DC-voltage hysteresis false
Depth 56.5mm
Dielectric Strength (Supply/contacts) 4 kV, (open contacts) 1000V AC
Height 84mm
IP Rating IP20
Max. operating voltage 415V AC
Max. permitted delay-on energization time 1s
Max. permitted off-delay time 60s
Max. temperature +60°C
Min. adjustable delay-on energization time N/A
Min. adjustable off-delay time 0.5s
Min. operating voltage 380V AC
Min. temperature -20°C
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Operating Voltage 380 - 415 V AC
Rated control supply voltage AC 50 Hz 400 - 400
Rated control supply voltage AC 60 Hz 400 - 400
Reading range (max.) 480V AC
Reading range (min.) 300V AC
Response value voltage 300 - 480V
Single-phase hysteresis possible false
Single-phase overvoltage possible false
Single-phase under voltage possible false
Switching current (max.) 8A
Switching Voltage 250 V/AC/ 400V AC
Switching voltage (max.) 400V AC
Temperature Range -20 - +50°C
Three-phase hysteresis possible true
Three-phase overvoltage possible true
Three-phase under voltage possible true
Type of electric connection Screw connection
Type of voltage measuring range AC
Voltage measuring range 1 300 - 400V
Voltage measuring range 2 380 - 480V
Voltage type for actuating AC
Width 35mm
With detachable clamps false
