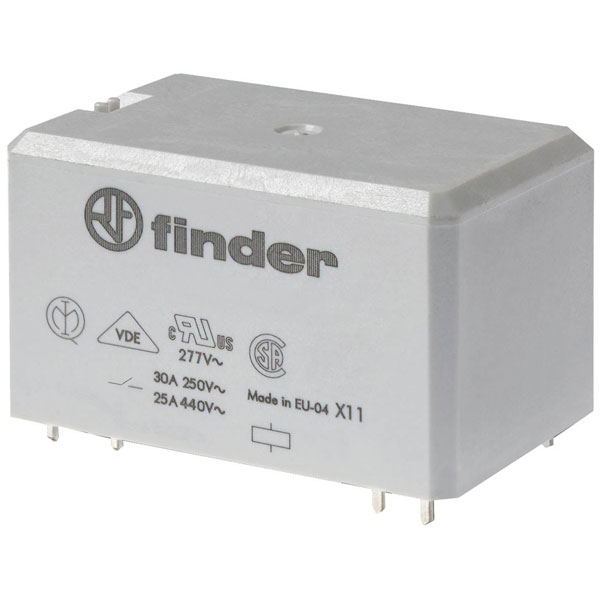

Finder 66.82.9.024.1000 series Plug-in Relay 24V DC 30A 2 change-overs

The Finder 66.82.9.024.1000 is a plug-in relay with a 24 V DC coil designed for switching currents up to 30 A, featuring 2 change-over contacts. It is suitable for PCB mounting and commonly used in industrial automation, control systems, and electronic circuit applications. This relay ensures reliable performance for high-current switching in various electrical installations.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Switching Current	30A
Ambient temperature	-40 - +70°C
Coil Resistance	340O
Complete with socket	false
Connection	Type C CEE 7/16 plug 6.3mm
Contact Material	AgNi
Degree of protection (IP)	N/A
Depth	68.50mm
Dimensions	(W x H x D) 33.50 x 31 x 68.50 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	31mm
Insulation Voltage	400V AC
IP Rating	IP40
Length	51.5mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Untreated
Maximum Temperature	+70°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mounting Type	PCB
Nominal Current	10A
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	24 - 24V
Switching Voltage	440V AC
Type	Plug-in relay
Type of electric connection	Soldering flag connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	33.50mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
