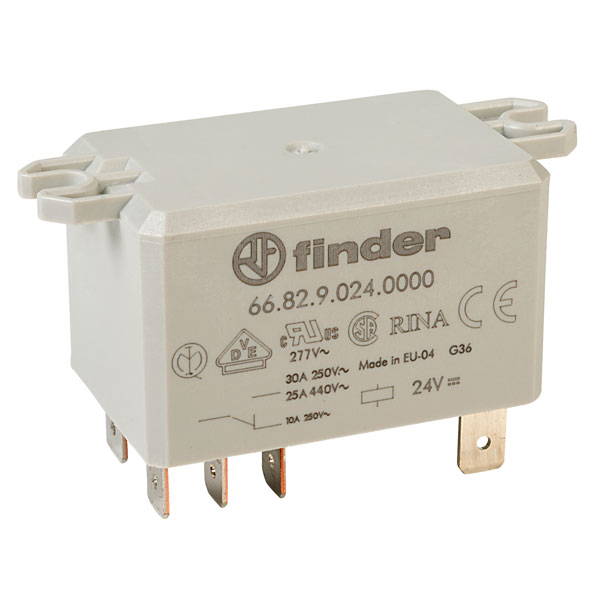

Finder 66.82.9.024.0000 24V Relay DPDT DC 30A (Flange Mounting) 66.82

Finder
Order Code:

60-4385

Brand: Finder MPN: 66.82.9.024.0000

Discontinued


The Finder 24V Relay DPDT DC 30A (Flange Mounting) 66.82 is from the Finder range of flange mounting DPDT relays.


  • Top flange mounting
  • 2 CO (DPDT-CO)
  • Dielectric strength between contacts of 1.5kW
  • Suitable for heavy duty load switching
  • Double insulation between coil and contacts
  • Safe high capacity switching
  • AC or DC version available
  • 6kV (1.2/50µs) insulation between coil and contacts
  • Ambient temperature –40°C to +70°C
  • Finder 66.82 series
Coil Voltage 24V
Contact Configuration DPDT
Switching Current 50A
Coil Resistance 340Ω
Length 51.5mm
Width 33.5mm
Height 31mm
Mounting Type PCB
Coil Current 70.5mA
Operating Temperature -40 to +70°C
Switching Voltage Max (AC) 440V

Questions

*Question functionality currently disabled
Monday, July 7, 2014 | Question by: Rapid Customer | Product code: 60-4385
Q. Any idea of the current rating of contacts when operated at rated coil voltage on 24V DC.
A. Hi Robert. Thank you for your question. The current ratings (maximum) are as follows: NO contacts 30A at 250V AC, NC contacts 10A at 250V AC.
