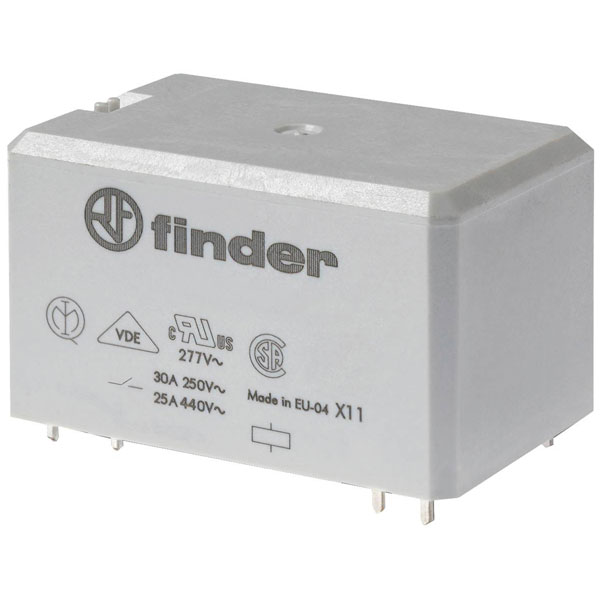

The Finder 66.82.8.230.1000 is a plug-in relay rated for 230 V AC and 30 A, with two change-over contacts, suitable for printed circuit boards. Manufactured by Finder, this relay is ideal for high-power applications and switching operations. Typical uses include automation systems, industrial control, and home appliances.
| Coil Voltage |
230V AC |
| Contact Configuration |
2CO (DPDT) |
| Switching Current |
30A |
| Ambient temperature |
-40 - +70°C |
| Coil Resistance |
4000Ω |
| Complete with socket |
false |
| Connection |
Type C CEE 7/16 plug 6.3 mm |
| Contact Material |
AgNi |
| Degree of protection (IP) |
N/A |
| Depth |
68.50mm |
| Dimensions |
(W x H x D) 33.50 x 31 x 68.50 mm |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| Height |
31mm |
| Insulation Voltage |
400V AC |
| IP Rating |
IP40 |
| Material contact |
Other copper alloys |
| Material of contact insert |
Thermoplastic |
| Material of contact surface |
Untreated |
| Max. temperature |
+70°C |
| Minimum Temperature |
-40°C |
| Mounting Type |
Plug-in |
| Nominal Current |
10A |
| Number of contacts as change-over contact |
2 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Rated control supply voltage AC 50 Hz |
230 - 230V |
| Rated control supply voltage AC 60 Hz |
230 - 230V |
| Switching Voltage |
440V AC |
| Type |
Plug-in relay |
| Type of electric connection |
Soldering flag connection |
| Type of switch contact |
Single contact |
| Voltage type for actuating |
AC |
| Width |
33.50mm |
| With detachable clamps |
N/A |
| With forced-guided contacts |
false |
| With LED indication |
false |
