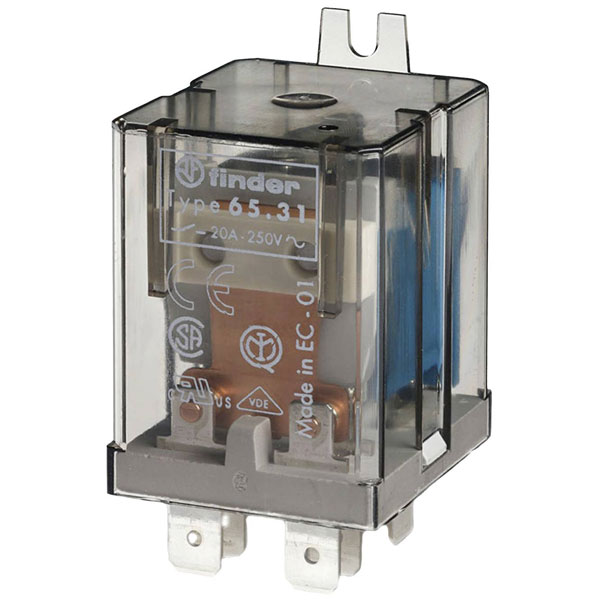

Finder 65.31.8.230.4000 Relay 230V AC 20A 1 Maker 1 Breaker

The Finder 65.31.8.230.4000 Plug-in Relay is a reliable device capable of handling 230 V AC and 20 A. Its robust construction makes it ideal for applications in control panels and industrial automation systems. Designed for easy integration, it suits a variety of printed circuit board installations.

Coil Voltage	230V AC
Contact Configuration	1NO
Switching Current	20A
Coil Resistance	7250O
Complete with socket	false
Connection	Faston connections 250 (6.35 x 0.8 mm).
Contact Material	AgSnO2
Degree of protection (IP)	N/A
Depth	36.5mm
Dimensions	(L x W x H) 36.50 x 32.20 x 42.20 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Durability	80 x 103 Switching operations
Height	42.20mm
IP Rating	Relay protection type RT I
Length	36.5mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Max. pick-up Voltage	253V AC
Max. switching capacity	5000VA
Max. temperature	+75°C
Min. pick-up Voltage	184V AC
Minimum Temperature	-40°C
Misc Attribute 1	Faston-connections
Mounting Type	Plug-in
Nominal Current	20A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Switching Voltage	250V AC
Switching Voltage Max	400V AC
Temperature Range	-40 - +75°C
Type	Plug-in relay
Type of electric connection	Soldering flag connection
Type of switch contact	Double contact
Voltage type for actuating	AC
Width	32.20mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
