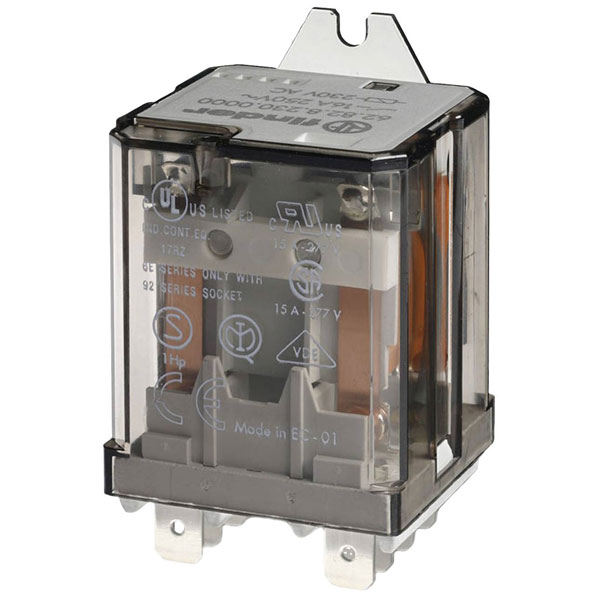

Finder 62.82.8.024.4300 Relay 24 V AC 16 A 2 makers PCB Mount Plug-in Type

Finder 62.82.8.024.4300 is a versatile relay designed for efficient operation on a 24 V AC supply, with a current rating of 16 A, making it an ideal choice for various industrial applications. This relay features a compact, plug-in design that facilitates easy integration into printed circuit boards, ensuring compatibility with modern electronic systems. With its robust construction and reliable switching performance, it is particularly suited for use in applications requiring repeated switching of medium to high power loads, such as in industrial control systems, automation equipment, and HVAC systems. The relay's form factor and mounting type offer significant advantages for engineers seeking a dependable, space-saving solution for circuit protection and load control.

Type	62.82.8.024.4300
Coil Nominal Voltage	24V AC
Complete with socket	false
Contact Material	AgSnO2
Contact Type	2 makers
Content	1
Degree of protection (IP)	N/A
Depth	35.8mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	68mm
IP Rating	Relay protection type RT I
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Max. pick-up Voltage	26.4V AC
Max. switching capacity	4000VA
Maximum Temperature	+50°C
Min. pick-up Voltage	20.4V AC
Minimum Temperature	-40°C
Nominal Current	16A
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	2
Product Type	Plug-in relay
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Resistance (coil)	62Ω
Switching current (max.)	16A
Switching voltage (max.)	400V AC
Type of electric connection	Soldering flag connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	38.2mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
