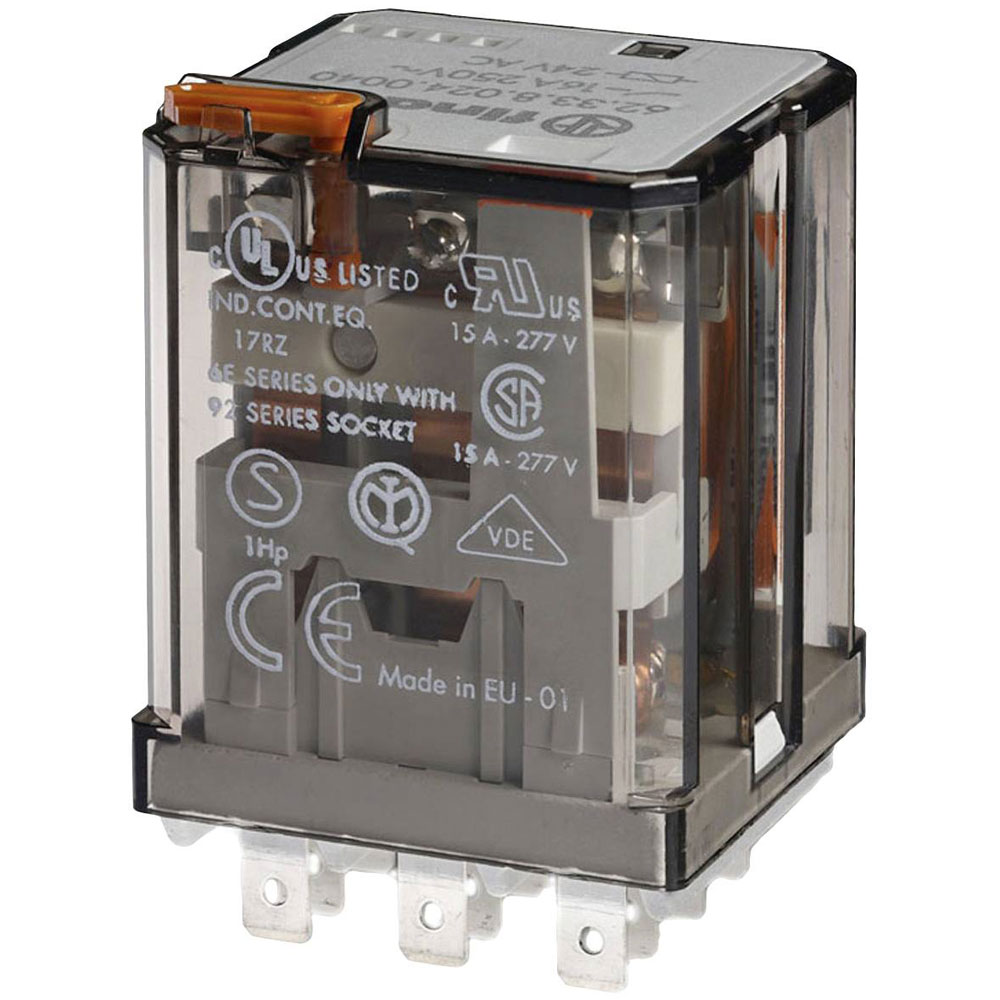

Finder 62.33.9.012.4040 Plug-in Relay 12V DC 16A 3CO Industrial use

Manufactured by Finder, the 62.33.9.012.4040 plug-in relay operates at 12 V DC and can handle up to 16 A with 3 change-over contacts. This robust relay is ideal for printed circuit board mounting in various electronic applications, offering versatility and reliability. Common applications include automation systems, temperature control devices, and power management systems.

Coil Voltage	12V DC
Contact Configuration	3CO (3PDT)
Switching Current	16A
Coil Resistance	110O
Complete with socket	false
Contact Material	AgCdO
Degree of protection (IP)	N/A
Depth	35.8mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Durability	100 x 103 switching games
Height	49.1mm
IP Rating	Relay protection type RT I
Length	35.8 mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Max. pick-up Voltage	13.2V DC
Max. switching capacity	4000VA
Max. temperature	+70°C
Min. pick-up Voltage	9.6V DC
Minimum Temperature	-40°C
Misc Attribute 2	Contactors
Mounting Type	Plug-in
Nominal Current	16A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	12 - 12V
Switching Voltage Max	400V AC
Temperature Range	-40 - +70°C
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	38.2mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
