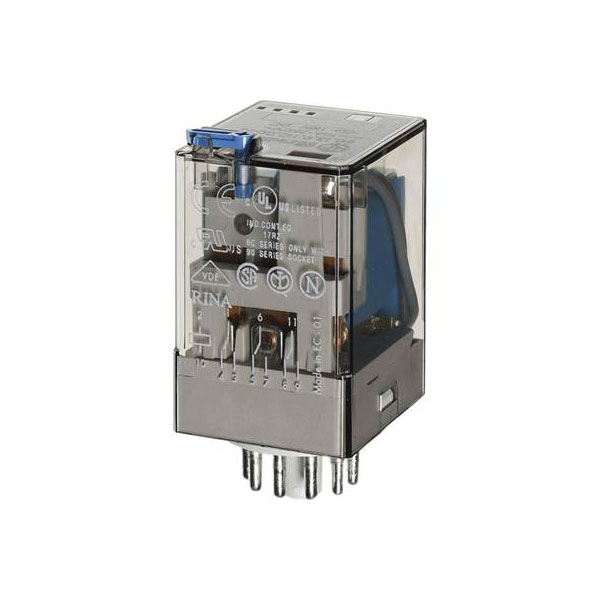

Finder 60.13.9.060.0074 Plug-in Relay 60V DC 10A 3 change-overs LED

The Finder 60.13.9.060.0074 is a plug-in relay that operates at 60 V DC with a capacity of 10 A and features 3 change-overs. This mini relay is often used in printed circuit board applications for switching purposes. It is suitable for systems that require reliable switching with a compact size.

Coil Voltage	60V DC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	36.4mm
Dimensions	(W x H x D) 32.5 x 54.2 x 36.4 mm
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
Height	54.2mm
IP Rating	IP20
Length	36.4mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	60 - 60V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	32.5mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
