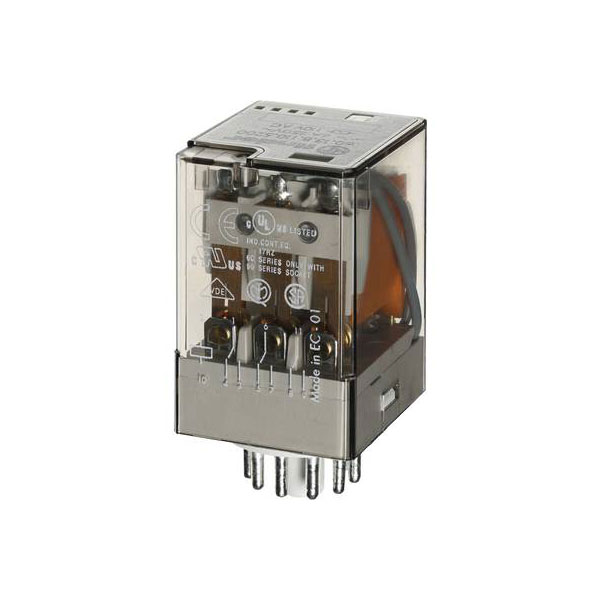

Finder 60.13.8.400.0040 industrial Relay 400V AC 10A 3 change-over contacts

The Finder plug-in relay, model 60.13.8.400.0040, has a capacity of 400 V AC and can handle a current of 10 A. This relay features three change-over contacts and is suitable for PCB mounting. It is commonly used in industrial automation and control systems.

Coil Voltage	400V AC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	36.4mm
Dimensions	(W x H x D) 32.5 x 54.2 x 36.4 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	54.2mm
IP Rating	IP20
Length	36.4mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	400 - 400V
Rated control supply voltage AC 60 Hz	400 - 400V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	32.5mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
