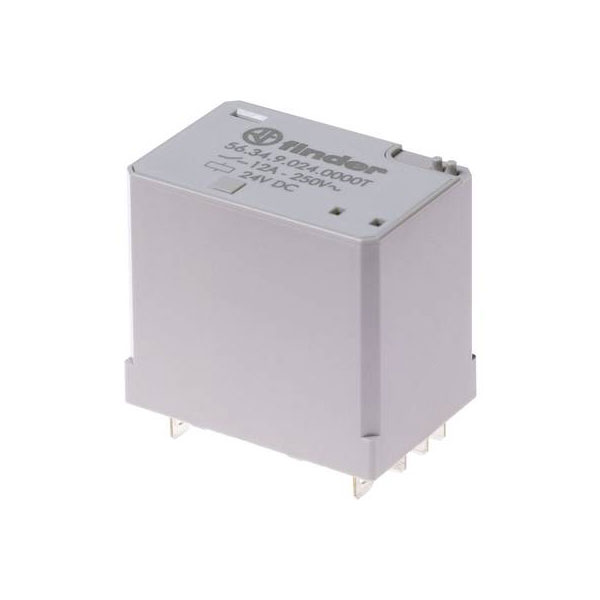

Finder 56.34.9.024.0000T Plug-in Relay 24 V DC 12 A 4 changers

The Finder plug-in relay 56.34.9.024.0000T is a 24 V DC relay featuring 12 A capacity with four change-over contacts. It's ideal for printed circuit board applications, ensuring reliable performance in electronic control systems. This relay is commonly used in automation and control panel industries for efficient electric signal switching.

Coil Voltage	24V DC
Contact Configuration	4CO (4PDT)
Switching Current	12A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 40.8 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	12A
Number of contacts as change-over contact	4
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	24 - 24V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	40.8mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
