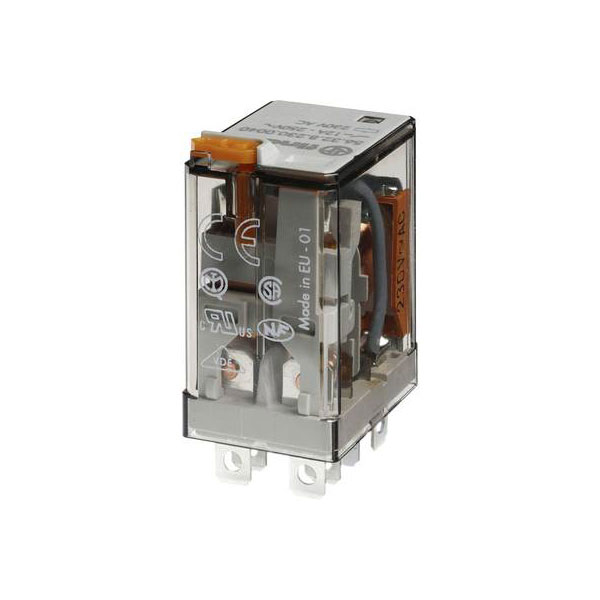

Finder 56.32.8.230.0000 Plug-in Relay 230V AC 12A 2 change-overs

Image Representative of Range

Finder 56.32.8.230.0000 Plug-in Relay 230V AC 12A 2 change-overs

Finder
Order Code:

03-4153

Brand: Finder MPN: 56.32.8.230.0000 EAN-13: 2050011503357
Qty Unit Price (Ex VAT)
1+ £10.97
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
20 in stock, despatched in 4 working days

The Finder plug-in relay, model 56.32.8.230.0000, operates at 230 V AC and can handle a current of up to 12 A. It features two change-over contacts and is designed for mounting on printed circuit boards. Typical applications include automation systems, industrial equipment, and electrical control panels.
Coil Voltage 230V AC
Contact Configuration 2CO (DPDT)
Switching Current 12A
Complete with socket false
Connection Connector
Degree of protection (IP) N/A
Depth 27.7mm
Dimensions (W x H x D) 20.7 x 37.7 x 27.7 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 37.7mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Duroplast
Material of contact surface Untreated
Mounting Type Plug-in
Nominal Current 12A
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage AC 50 Hz 230 - 230V
Rated control supply voltage AC 60 Hz 230 - 230V
Type Plug-in relay
Type of electric connection Plug-in connection
Type of switch contact Single contact
Voltage type for actuating AC
Width 20.7mm
With detachable clamps N/A
With forced-guided contacts false
With LED indication true
