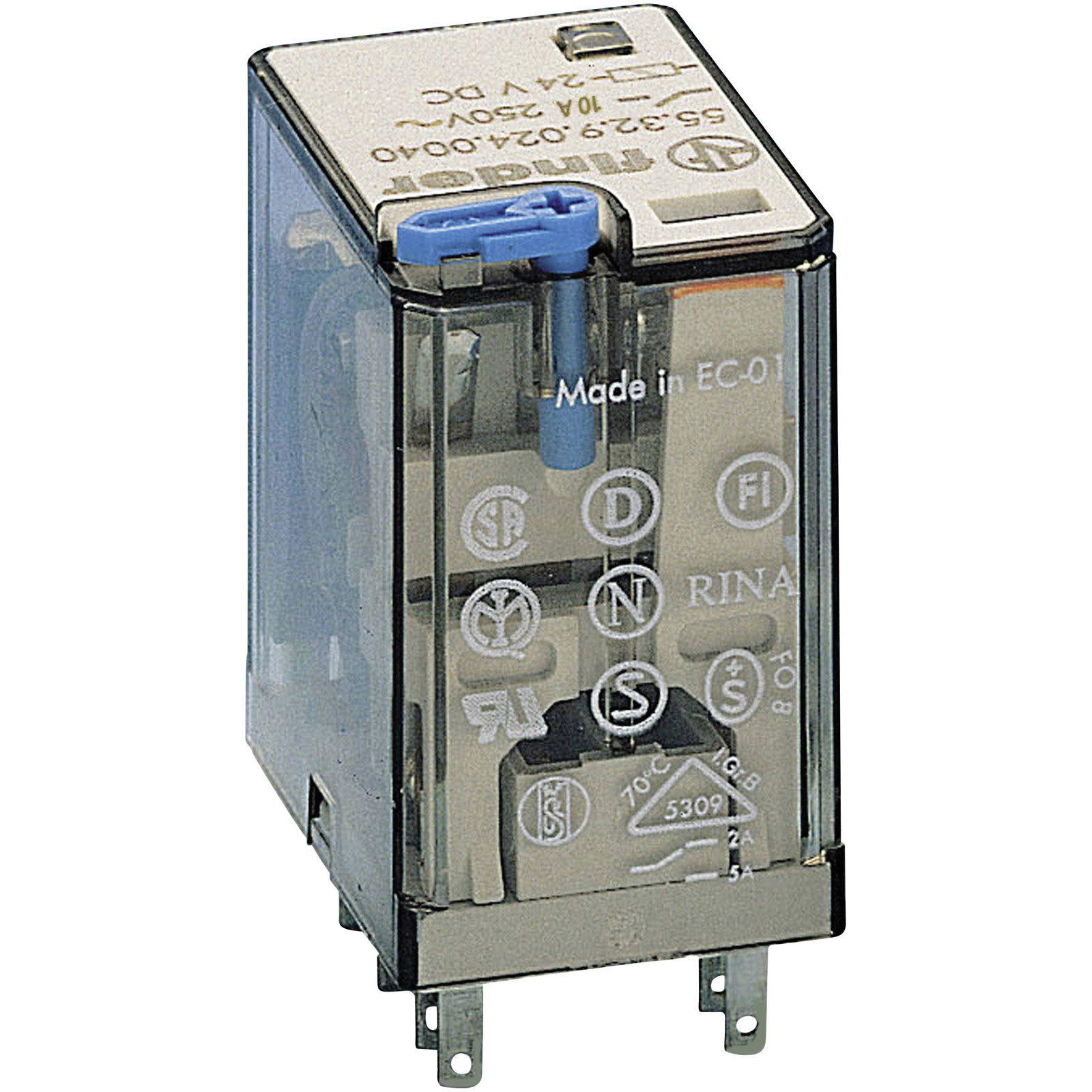

Finder 55.34.8.060.0040 Plug-in Relay 60V AC 7A 4 change-overs

The Finder plug-in relay 55.34.8.060.0040 operates at 60 V AC with a capacity of 7 A and features four change-over contacts. It is designed for PCB mounting and is suitable for applications in industrial automation and control systems. Typical uses include switching and controlling circuits in electronic and electrical equipment.

Coil Voltage	60V DC
Contact Configuration	4CO (4PDT)
Switching Current	7A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	7A
Number of contacts as change-over contact	4
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	60 - 60V
Rated control supply voltage AC 60 Hz	60 - 60V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
