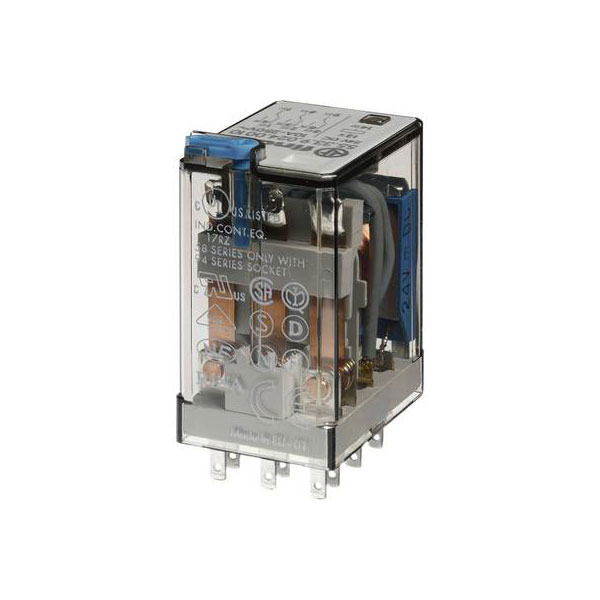

Finder 55.33.9.060.0010 Plug-in Relay 60V DC 10A 3 change-overs mini

The Finder 55.33.9.060.0010 Plug-in Relay operates on 60 V DC and supports a current of 10 A with 3 change-over contacts. It is ideal for applications involving printed circuit boards and can efficiently handle various switching tasks. This relay is commonly used in industrial automation and control systems.

Coil Voltage	60V DC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	60 - 60V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
