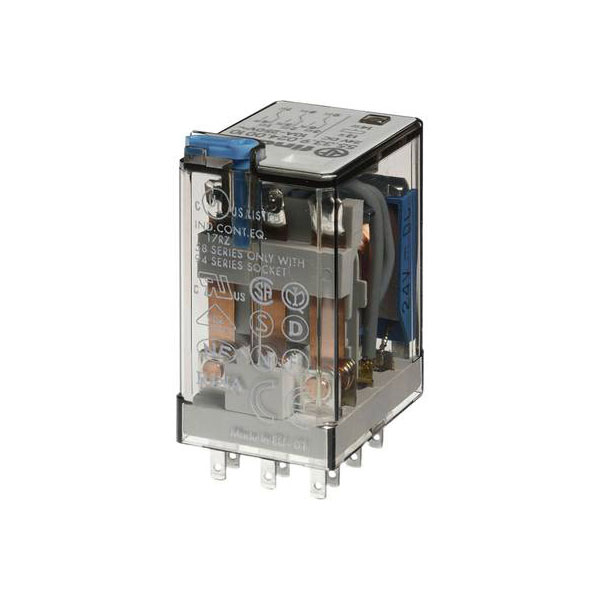

Finder 55.33.9.024.0070 Plug-in Relay 24V 10A 3 change-overs lockable

The Finder 55.33.9.024.0070 plug-in relay operates at 24 V DC and handles up to 10 A with three change-over contacts. It is ideal for applications requiring reliable switching of electrical circuits, such as in control panels or automation systems. The robust design makes it suitable for a variety of industrial and commercial environments.

Coil Voltage	24V DC
Contact Configuration	3CO (3PDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	Plug-in
Nominal Current	10A
Number of contacts as change-over contact	3
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	24 - 24V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
