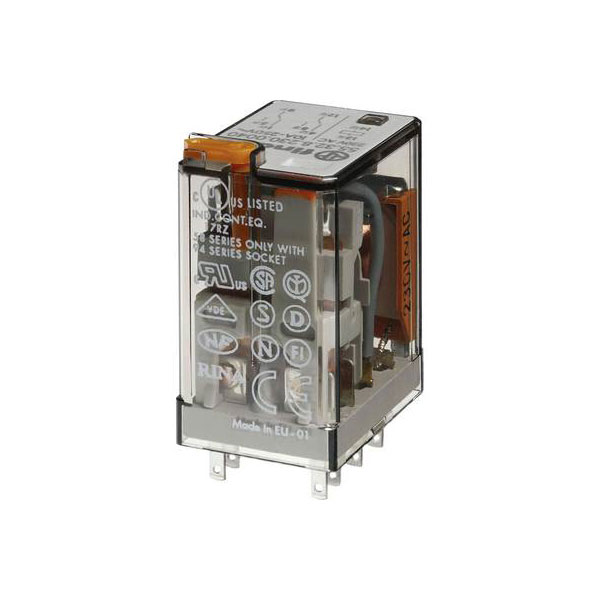

Finder 55.32.8.024.0050 Plug-in Relay 24 V AC 10 A 2 change-overs

The Finder 55.32.8.024.0050 is a plug-in relay designed for 24 V AC operations, capable of handling 10 A current with 2 change-over contacts. Manufactured by Finder, this relay is ideal for PCB mounting and suitable for printed circuit board applications. It is commonly used in automation systems and electrical control panels.

Coil Voltage	24V
Contact Configuration	2CO (DPDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	10A
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	true
