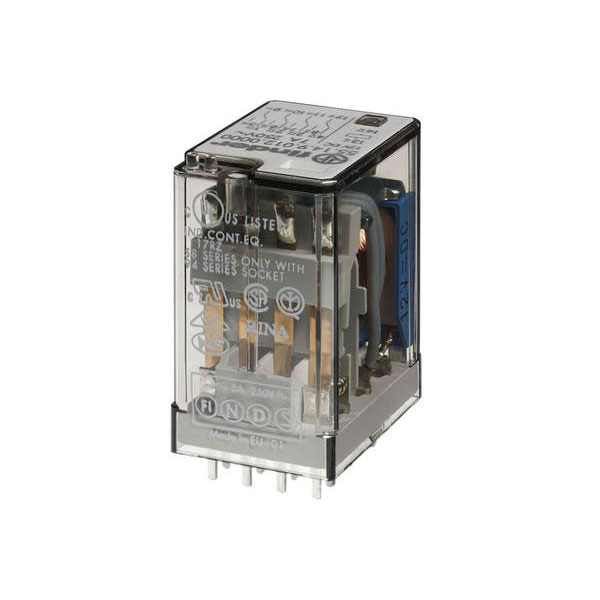

Finder 55.14.8.110.0000 series PCB Relay 110V AC 7A 4 change-overs

Finder manufactures the 55.14.8.110.0000 PCB relay, which operates at 110 V AC with a capacity of 7 A and features four change-over contacts. This compact printed circuit board relay is ideal for controlling circuits in automation systems and industrial equipment. It is commonly used in signal switching and load management applications.

Coil Voltage	110V AC
Contact Configuration	4CO (4PDT)
Switching Current	7A
Complete with socket	false
Connection	Print
Degree of protection (IP)	N/A
Depth	27.7mm
Dimensions	(W x H x D) 20.7 x 37.2 x 27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	37.2mm
IP Rating	IP20
Length	27.7mm
Material contact	Other copper alloys
Material of contact insert	Duroplast
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	7A
Number of contacts as change-over contact	4
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage AC 50 Hz	110 - 110V
Rated control supply voltage AC 60 Hz	110 - 110V
Type	PCB relay
Type of electric connection	PCB connection
Type of switch contact	Single contact
Voltage type for actuating	AC
Width	20.7mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
