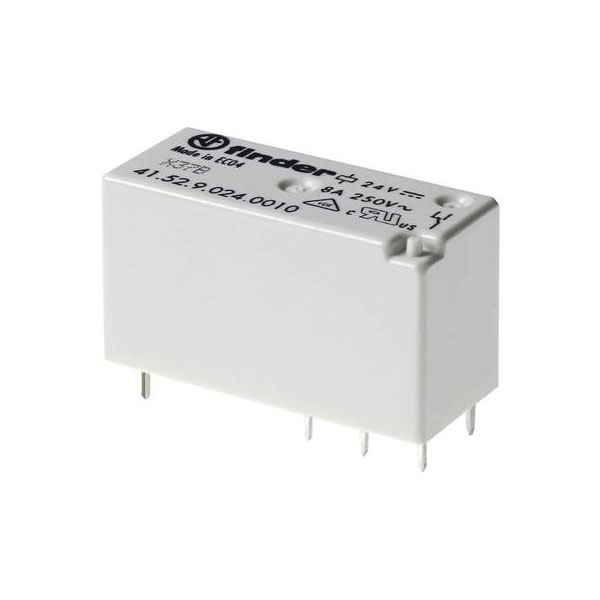

Finder 41.52.9.024.5010 PCB Relay 24V DC 8A 2 changeovers contact AgNi

The Finder PCB relay 41.52.9.024.5010 operates at 24 V DC and can handle 8 A current with two change-over contacts. It is ideal for applications requiring reliable switching in power management and automation systems. Typically used in industrial control panels and circuit boards, this relay ensures efficient performance in compact spaces.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Switching Current	8A
Complete with socket	false
Connection	Print
Degree of protection (IP)	N/A
Depth	29mm
Dimensions	(W x H x D) 12.6 x 15.7 x 29 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	15.7mm
IP Rating	IP40
Length	29.0mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Gold
Mounting Type	PCB
Nominal Current	8A
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Rated control supply voltage DC	24 - 24V
Type	PCB relay
Type of electric connection	PCB connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	12.6mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
