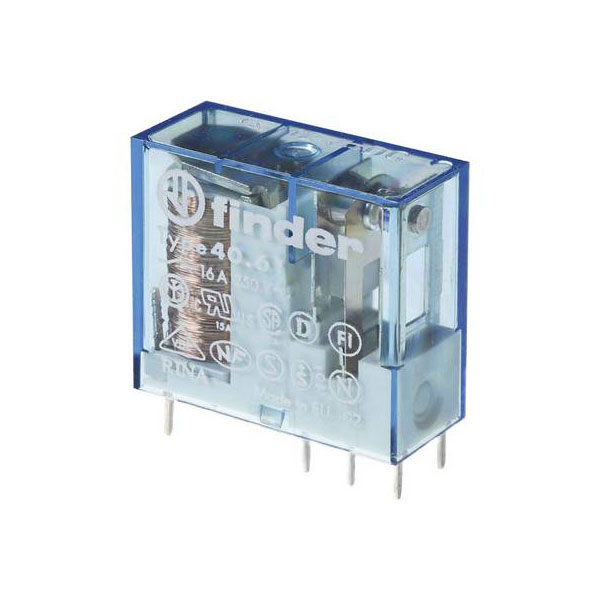

Finder 40.61.9.024.4300 PCB Relay 24V DC 16A NO AgSnO2 Plug-in Relay

The Finder 40.61.9.024.4300 is a printed circuit board relay with a 24 V DC coil and a 16 A rating. It is designed for reliable switching in electronic equipment. Typical applications include industrial automation and control systems.

Coil Voltage	24V DC
Contact Configuration	1NO
Switching Current	16A
Complete with socket	false
Degree of protection (IP)	N/A
Depth	29mm
Dimensions	(W x H x D) 12.4 x 25 x 29 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	25mm
IP Rating	IP20
Length	29.0mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	16A
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Rated control supply voltage DC	24 - 24V
Type	PCB relay
Type of electric connection	Plug-in connection
Type of switch contact	Single contact
Voltage type for actuating	DC
Width	12.4mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
