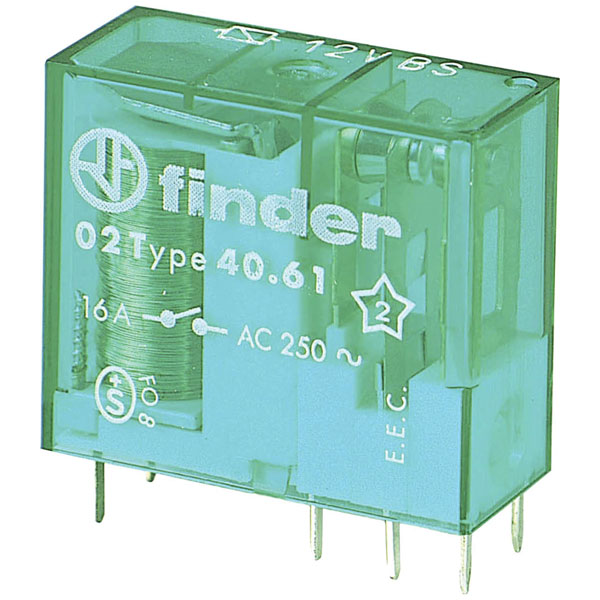

Finder 40.61.7.024.4001pcB Relay 24V DC 16A change-over EN certified

Image Representative of Range

Finder 40.61.7.024.4001pcB Relay 24V DC 16A change-over EN certified

Finder
Order Code:

03-3802

Brand: Finder MPN: 40.61.7.024.4001 EAN-13: 8012823107332
Qty Unit Price (Ex VAT)
1+ £4.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
233 in stock, despatched in 4 working days

The Finder 40.61.7.024.4001 is a PCB relay designed for 24 V DC operation and capable of handling up to 16 A with a single change-over contact. This component is suitable for use in printed circuit boards and typical applications include controlling electrical loads in automation and signal switching. The compact design makes it ideal for use in space-constrained environments.
Coil Voltage 24V DC
Contact Configuration 1 change-over
Switching Current 16A
Coil Resistance 1150Ω
Connection Solder pins
Contact Material AgSnO2
Control Mode monostable, 1 coil
Creepage distance (coil/clips) 8mm
Dimensions (L x W x H) 29 x 12.4 x 25 mm
Height 25mm
Length 29mm
Max. pick-up Voltage 36V DC
Max. switching capacity 4000VA
Max. temperature +85°C
Min. pick-up Voltage 17.5V DC
Minimum Temperature -40°C
Mounting Type PCB
Switching Voltage Max 400V AC
Type PCB relay
Width 12.4mm
