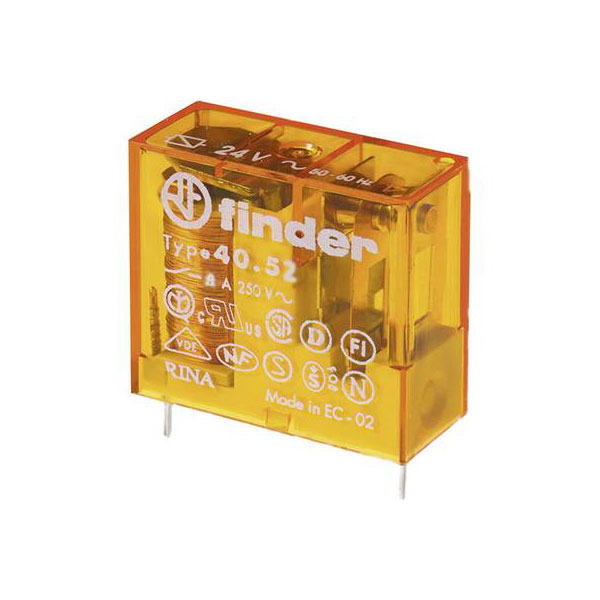

Finder 40.52.8.048.5000 PCB Relay 48 V AC 8 A 2 CO Plug-in RT II

Image Representative of Range

Finder 40.52.8.048.5000 PCB Relay 48 V AC 8 A 2 CO Plug-in RT II

Finder
Order Code:

03-3760

Brand: Finder MPN: 40.52.8.048.5000 EAN-13: 2050011635539
Qty Unit Price (Ex VAT)
1+ £8.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

The Finder 40.52.8.048.5000 PCB relay operates at 48 V AC and supports a current of up to 8 A with two change-overs. It is designed for mounting on printed circuit boards, making it ideal for compact electronic applications. Typically used in industrial automation, the relay ensures reliable switching in control panels and machinery systems.
Coil Voltage 48V
Contact Configuration 2CO (DPDT)
Switching Current 8A
Complete with socket false
Degree of protection (IP) N/A
Depth 29mm
Dimensions (W x H x D) 12.4 x 25 x 29 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
Height 25mm
IP Rating IP20
Material contact Other copper alloys
Material of contact insert Thermoplastic
Material of contact surface Gold
Mounting Type PCB
Nominal Current 8A
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 0
Rated control supply voltage AC 50 Hz 48 - 48V
Rated control supply voltage AC 60 Hz 48 - 48V
Type PCB relay
Type of electric connection Plug-in connection
Type of switch contact Single contact
Voltage type for actuating AC
Width 12.4mm
With detachable clamps N/A
With forced-guided contacts false
With LED indication false
