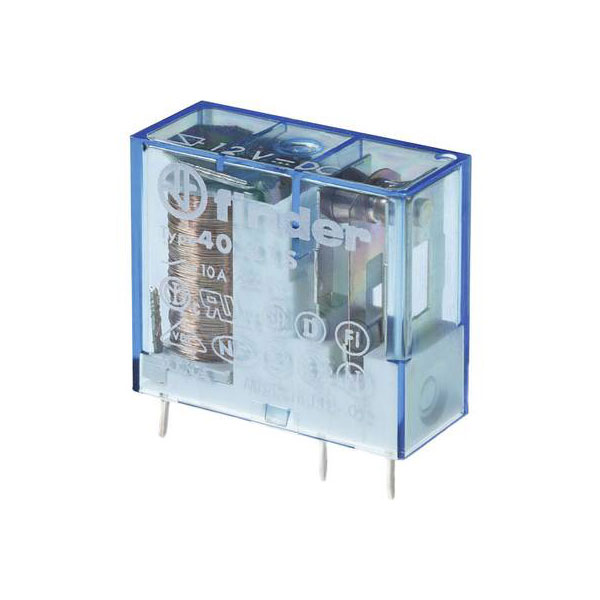

Finder 40.31.9.048.0000 PCB Relay 48V DC 10A 1CO Plug-in RTII

The Finder 40.31.9.048.0000 is a PCB relay designed to handle 48 V DC and can switch up to 10 A with a single change-over contact. It is ideal for use in control panels and automation systems where reliable switching is required. This mini relay is suited for printed circuit board mounting, providing compact and efficient performance.

Coil Voltage	48V
Contact Configuration	1CO (SPDT)
Switching Current	10A
Complete with socket	false
Connection	Connector
Degree of protection (IP)	N/A
Depth	29mm
Dimensions	(W x H x D) 12.4 x 25 x 29 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	25mm
IP Rating	IP20
Length	29.0mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Untreated
Mounting Type	PCB
Nominal Current	12A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage DC	48 - 48V
Type	PCB relay
Type of electric connection	Plug-in connection
Type of switch contact	N/A
Voltage type for actuating	DC
Width	12.4mm
With detachable clamps	N/A
With forced-guided contacts	false
With LED indication	false
