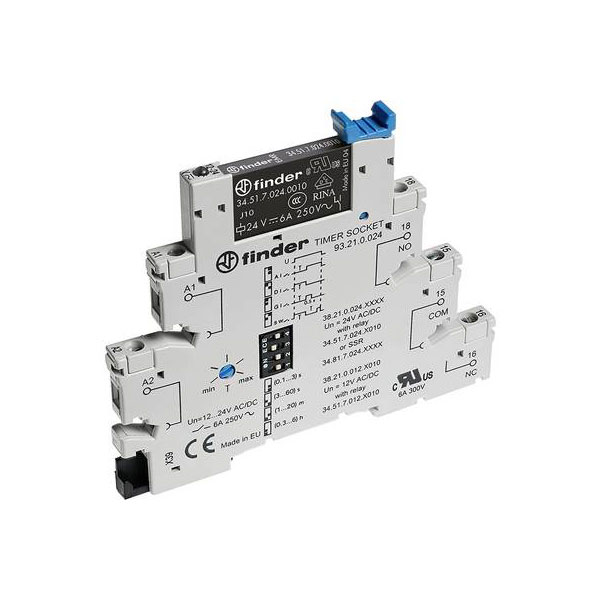

Finder 38.21.0.024.0060 time Relay 24V DC/AC 0.1-21600s 1 change-over

The Finder 38.21.0.024.0060 is a multifunction relay designed for both DC and AC operations at 24 volts. It features a wide time range from 0.1 to 21,600 seconds with one change-over contact. This time delay relay is ideal for applications such as delay switches and staircase light controls.

Type	TDR
Complete with socket	true
Connection	Screws
Contact Configuration	1 change-over
Degree of protection (IP)	IP20
Depth	75.6mm
Dim	(W x H x D) 6.2 x 87.9 x 75.6 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	87.9mm
Material contact	Other copper alloys
Material of contact insert	Thermoplastic
Material of contact surface	Untreated
Nominal Current	6A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating Voltage	24V DC/AC
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	24 - 24V
Switching current (max.)	6A
Time range (max.)	21600s
Time range (min.)	0.1s
Type of electric connection	Screw connection
Type of switch contact	Single contact
Voltage type for actuating	AC/DC
Width	6.2mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	true
