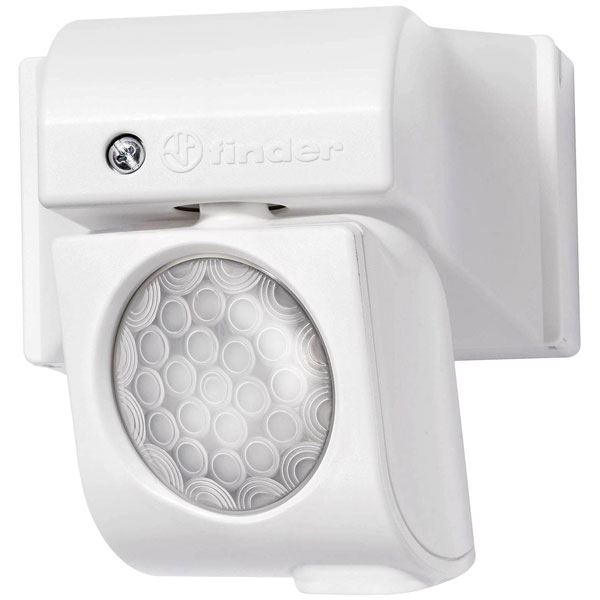

Finder 18.31.0.024.0300 IR motion detector 24 V DC/AC interior use

The Finder 18.31.0.024.0300 is a passive infrared motion detector compatible with both 24 V DC and 24 V AC power sources. It is designed for use in motion detection, twilight sensing, and movement sensor applications. Typical uses include lighting automation and security systems.

Type	IR motion detector
Supply Voltage	24V AC/DC
Mounting Type	Surface-mount
Animal zone	true
Anti-bacterial treatment	false
Bridging switch	N/A
Built-in depth	N/A
Built-in diameter	N/A
Built-in length	N/A
Built-in Width	N/A
Colour	White
Compatible with Amazon Alexa	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Connection Type	Screwed terminal
Constant light control	false
Contact Material	AgSnO2
Contact Type	1 maker
Control current	10mA
Creep-under protection	N/A
Degree of protection (IP)	IP40
Depth	80mm
Diameter	N/A
Diameter reach on floor	N/A
Dim function with dimmer basic element	false
Electrical lifespan	100 x 103 cycles
Factory colour	White
Forced switch off	false
Forced switch on	false
Frequency	50 - 60Hz
Halogen free	true
Height	4.2mm
HVAC-control	true
IFTTT support available	false
Impact strength	N/A
Light sensitivity (max.)	350lx
Light sensitivity (min.)	5lx
Material	Plastic
Material quality	Thermoplastic
Max. duty cycle	12min
Max. presence range	N/A
Max. Range	8m
Max. reach frontally	N/A
Max. reach sideways	N/A
Max. starting current	20A
Max. switching capacity	2500VA
Max. switching power	1000W
Max. switching power LED	300W
Maximum Temperature	+50°C
Min. depth of built-in installation box	N/A
Min. starting current	N/A
Min. switch-on time	10s
Min. temperature	-10°C
Model	Movement sensor
Mounting method	Surface mounted
Networkable	false
Nominal Voltage	250
Nominal voltage (details)	250 V/AC
Number of switching zones	N/A
Operating Voltage	110 - 230 V/AC
Optimum mounting height	N/A
RAL-number (similar)	9010
Remote operation	false
Response value luminosity	5 - 350lx
Response value luminosity adjustable	true
Response value sensitivity adjustable	true
Scan angle	N/A
Sensitivity	1 - 500lx
Sensor Type	Passive infrared
Staircase light controller	true
Substation input	false
Suitable for ceiling mounting	true
Suitable for C-load	true
Suitable for wall mounting	false
Suitable for wireless transmission	false
Surface finishing	Matt
Surface protection	N/A
Switching Capacity	(AC1) 2500 VA/ (AC15) 450VA
Switching Current	10A
Switching current (max.)	10A
Switching Voltage	250 V/AC/ 400 V/AC
Switching voltage (max.)	400V AC
Switching-on delay	N/A
Switch-off delay	N/A
Teach-function for response value luminosity	N/A
Temperature	-10 - 50°C
Temperature Range	-10 - +50°C
Time range	12 s - 35min
Time range (max.)	12min
Time range (min.)	10s
Transparent	true
Voltage type	AC/DC
Width	80mm
With alarm function	false
With DALI interface	false
With remote control	false
With signal unit	true
