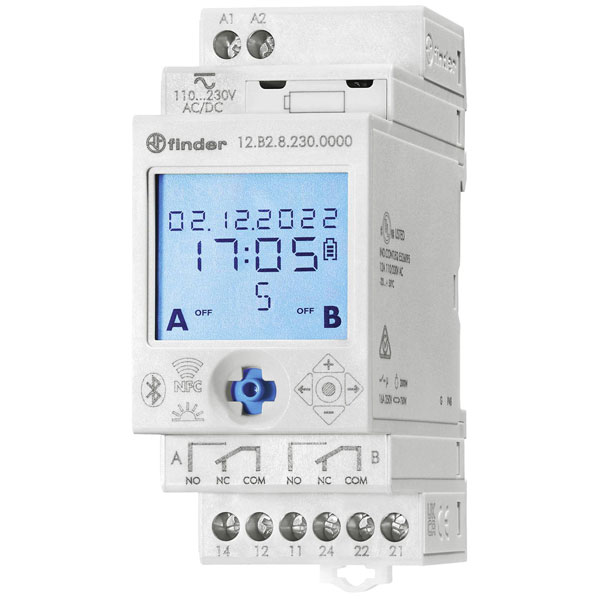

Finder 12.B2.8.230.0000 DIN Rail timer 16 A LCD Bluetooth/NFC Astro control

Finder
Order Code:

03-3456

Brand: Finder MPN: 12.B2.8.230.0000 EAN-13: 8012823446646
Qty Unit Price (Ex VAT)
1+ £159.98
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

The Finder 12.B2.8.230.0000 DIN rail mount timer features astronomical and random timing functions, with 12 months of settings options. It is ideal for automated lighting control applications such as staircase lighting and security lighting. This multifunction relay is perfect for precise and flexible time delay operations in various industrial and commercial environments.
Type DIN rail mount timer
Supply Voltage 110 - 230V
Number of Channels 2
24 h program true
60 min program true
Accuracy per day 1s
Annual program true
Astro program true
Automatic switching summer/winter time true
Autonomy in hours N/A
Autonomy in years 6
Contact Configuration 2 change-overs
Contact Material AgSnO2
Contact Type Change-over contact (NO/NC)
Cycle program true
Degree of protection (IP) IP20
Depth 56.5mm
External programming true
External push button input N/A
Frequency supply voltage 50 - 60Hz
GPS (global positioning system) true
Height 84mm
Holiday program true
Hour meter N/A
Impulse program true
IP Rating IP20
Mains synchronous true
Max. operating voltage 230V DC/AC
Max. switching capacity 4000VA
Max. switching power LED N/A
Max. temperature 50°C
Min. operating voltage 110V DC/AC
Min. temperature -20°C
Mounting method DIN rail
Nominal switching current at 250 V AC 16A
Number of Contacts 2
Number of memory locations 100
Number of switching intervals 100
Operating Voltage 110 - 230 V DC/AC
Potential free switch contact true
Power reserve 6Years
Quartz controlled true
Radio-controlled true
Radio-controlled (DCF77) false
Random program true
Shortest switching time channel 1 1min
Shortest switching time channel 2 N/A
Suitable for manual operation true
Switching current (max.) 30A
Switching distance (min) 1min
Switching preselection N/A
Switching voltage (max.) 400V AC
Text guidance in display true
Voltage type (supply voltage) AC/DC
Weekly program true
Width 35mm
Width in number of modular spacings 2
With memory card N/A
