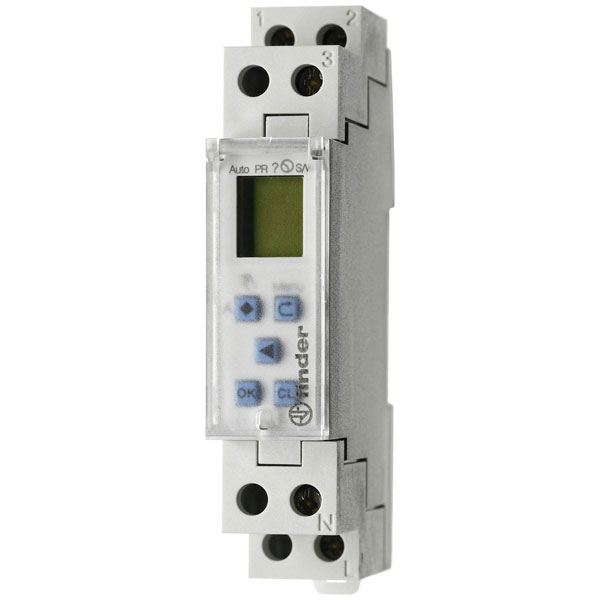

Manufactured by Finder, the 12.A2.0.024.0000 Timer is designed for both 7 day and 24-hour modes along with daylight savings, sunup, and sundown control. Additional features include a holiday programme mode and impulse change-over functionality, all housed in an IP20 casing. This timer is ideal for automation in residential and commercial settings, providing versatile control for lighting and other electrical systems.
| Type |
Timer |
| Supply Voltage |
12 - 24V |
| Number of Channels |
2 |
| 24 h program |
true |
| 60 min program |
true |
| Accuracy per day |
1s |
| Annual program |
false |
| Astro program |
true |
| Automatic switching summer/winter time |
true |
| Autonomy in hours |
N/A |
| Autonomy in years |
6 |
| Contact Type |
Change-over contact (NO/NC) |
| Cycle program |
true |
| Degree of protection (IP) |
IP20 |
| Depth |
60.8mm |
| Dim |
(W x H x D) 35 x 88.8 x 60.8 mm |
| External programming |
true |
| External push button input |
N/A |
| Frequency supply voltage |
50 - 60Hz |
| GPS (global positioning system) |
false |
| Height |
88.8mm |
| Holiday program |
false |
| Hour meter |
N/A |
| Impulse program |
true |
| IP Rating |
IP20 |
| Mains synchronous |
false |
| Max. switching power LED |
N/A |
| Memory slots |
50 |
| Misc Attribute |
quartz-controlled |
| Mounting method |
DIN rail |
| Nominal switching current at 250 V AC |
16A |
| Number of Contacts |
2 |
| Number of memory locations |
50 |
| Number of SPCs |
2 |
| Potential free switch contact |
true |
| Quartz controlled |
true |
| Radio-controlled |
true |
| Radio-controlled (DCF77) |
false |
| Random program |
N/A |
| Shortest switching time |
1min |
| Shortest switching time channel 1 |
1min |
| Shortest switching time channel 2 |
N/A |
| Suitable for manual operation |
true |
| Summer/winter time |
automatic |
| Switching current (max.) |
16A |
| Switching preselection |
N/A |
| Text guidance in display |
true |
| Voltage type (supply voltage) |
AC/DC |
| Weekly program |
true |
| Width |
35mm |
| Width in number of modular spacings |
2 |
| With memory card |
N/A |
